Riley

Riley is a software rasteriser written in Zig for digital image correlation uncertainty quantification (DIC UQ). It renders deformed speckle pattern images from finite element simulations and supports higher order surface elements including tri3, tri6, quad4, quad8 and quad9. Riley supports nodal, texture and analytic function shaders, including higher order texture sampling and mixed scenes with multiple mesh and shader types.

We chose Zig because it gives us explicit memory control, strong compile-time specialisation and direct SIMD support. Riley uses comptime to generate specialised raster paths for geometry, shader and build-policy combinations so the hot loop avoids runtime dispatch.

Getting Started: Zig

Riley currently targets Zig 0.16.0, available here.

The first check to run is the minimal regression suite:

zig test -O ReleaseSafe ./src/test_min.zig

or with the build system:

zig build test-min -Doptimize=ReleaseSafe

Plain zig run and zig test on files under ./src/ default to the standard Riley configuration:

• precision: f64
• SIMD: on
• Newton solver: fast

The build system can override these defaults:

zig build <STEP> -Dprecision=f64 -Dsimd=on -Doptimize=ReleaseSafe
zig build <STEP> -Dprecision=f64 -Dsimd=off -Doptimize=ReleaseSafe
zig build <STEP> -Dprecision=f32 -Dsimd=on -Doptimize=ReleaseSafe
zig build <STEP> -Dnewton-solver=robust -Doptimize=ReleaseSafe
zig build <STEP> -Dsimd-vector-width=8 -Doptimize=ReleaseSafe

Run zig build --help to see the available build steps.

The min suite contains two high-signal cases:

• multimesh: two elements of each supported type in one scene, rendered with nodal and texture shading
• sphere200: a sphere rendered across shader combinations and element orientations

These are the quickest correctness checks and should be your first stop before running wider gold or benchmark suites.

Only the main production-path min gold is kept in the repository by default, so the min suite is intended primarily for f64 with SIMD enabled. The min suite also requires .simd = .on; the scalar min orchestration is not implemented.

For deeper test, gold generation and benchmark workflows, see dev/README.md.

Getting Started: Python

We provide Python bindings to the Riley C ABI through Cython, and publish a riley-raster package on PyPI.

Install from PyPI with:

pip install riley-raster

This builds Riley from Zig source on your local machine, so installation can take a minute or two depending on hardware.

For local development, clone the repository, create a virtual environment and install from source:

pip install -e .

Python demos live in src/riley/pydemos/ and the Python tests live in src/riley/pytests/.

Run the packaged Python test suite with:

python -m pytest --pyargs riley.pytests -s

or through Riley's module entry point:

python -m riley test

The repo parity test inside riley.pytests compares Python demo output against Zig demo output. It runs when the repository assets are available from the current working directory and skips cleanly otherwise.

Capability Demonstration

We include several demonstration scripts in ./src/ and Python equivalents in ./src/riley/pydemos/.

In Zig:

zig run -O ReleaseFast ./src/demo_<CASE>.zig

or with the build system:

zig build demo-<CASE> -Doptimize=ReleaseFast

where CASE is one of sphere200, rabbits, dicuq, or stereocal. Zig demo output is written to ./out/demo-CASE/.

Zig demo source on GitHub:

• demo_sphere200.zig
• demo_rabbits.zig
• demo_dicuq.zig
• demo_stereocal.zig

In Python:

python -m riley demo_<CASE>

Python demo output is written to Path.cwd() / "out-riley-py" / "demo-CASE".

Python demo source on GitHub:

• demo_sphere200.py
• demo_rabbits.py
• demo_dicuq.py
• demo_dic_from_exodus.py
• demo_stereocal.py

Demo 1: Speckle Sphere

For this demonstration we import a sphere mesh and apply a speckle pattern texture shader. This is a representative single-mesh, single-shader case.

Demo 2: Rendering Rabbits

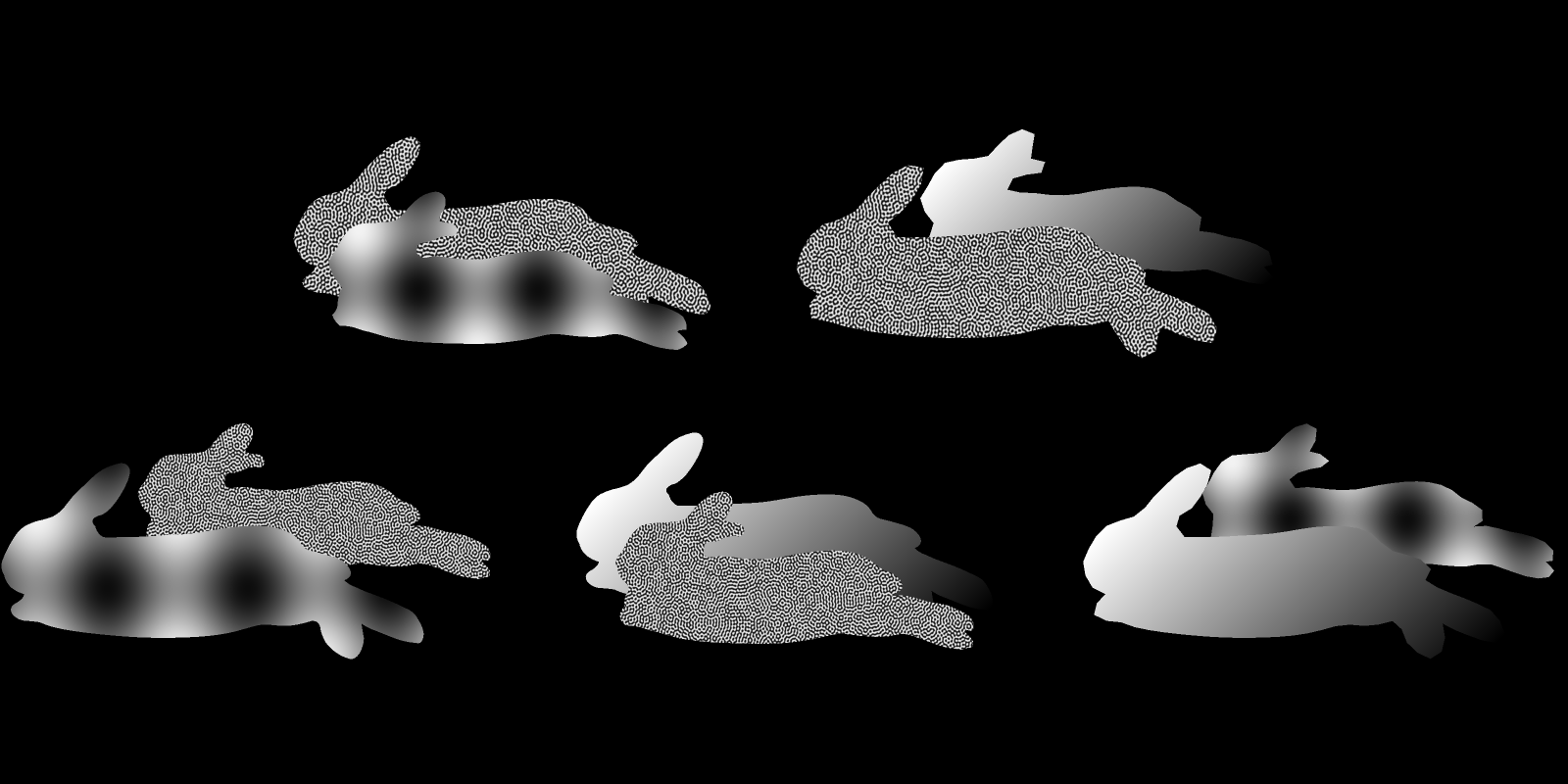

This demonstration renders rabbit meshes composed of all supported element types: tri3, tri6, quad4, quad8 and quad9. It also exercises the main shader families in one scene.

Demo 3: Digital Image Correlation Uncertainty Quantification

This case demonstrates a representative stereo DIC UQ rendering of a plate with a hole in tension. The input FE model is in ./data/FE/.

Camera 0	Camera 1

Demo 4: Stereo Calibration

This demonstration uses the stereo setup from the DIC UQ case and renders stereo calibration target images. The input meshes are in ./data/calplate/.

Camera 0	Camera 1

Project Layout

The main Zig entry point for the rendering pipeline is the raster(...) family in ./src/riley/zig/riley.zig.

Useful top-level locations:

• src/: Zig demos, tests, benchmarks and the core Riley source
• src/riley/zig/: core Zig implementation
• src/riley/pydemos/: packaged Python demos
• src/riley/pytests/: packaged Python tests
• pyscripts/: compatibility wrappers for the packaged Python demo/test entry points
• scripts/: benchmark and performance orchestration scripts
• gold/: gold reference renders
• out/: Zig render and benchmark output
• out-riley-py/: Python render output
• dev/README.md: detailed developer testing and benchmark notes

For a mathematical and architectural overview, see the engrXiv preprint: Riley: A computational framework for higher-order finite element image synthesis applied to digital image correlation uncertainty quantification.

C Interface

Riley provides a C-compatible API for use from other languages. The Python bindings use this interface through Cython, but it can also be called from C or from any language with a C FFI.

The public C ABI is intentionally fixed to the production Riley build with: precision=f64, SIMD=on.

This keeps the exported ABI stable for downstream callers. The extern types and functions live in src/riley/zig/c-riley.zig.

Citing Riley

If you have found Riley useful you can cite it using:

Fletcher, L., Hirst, J., and Bielajewa, W. (2026). Riley: A computational framework for higher-order finite element image synthesis applied to digital image correlation uncertainty quantification. engrXiv preprint. https://engrxiv.org/preprint/view/7300

@article{fletcher2026riley,
  title   = {Riley: A computational framework for higher-order finite element image synthesis applied to digital image correlation uncertainty quantification},
  author  = {Fletcher, Lloyd and Hirst, Joel and Bielajewa, Wiera},
  year    = {2026},
  journal = {engrXiv},
  note    = {Preprint},
  url     = {https://engrxiv.org/preprint/view/7300}
}

Contributors

• Lloyd Fletcher (ScepticalRabbit), UK Atomic Energy Authority
• Joel Hirst (JoelPhys), UK Atomic Energy Authority
• Wiera Bielajewa (WieraB), UK Atomic Energy Authority

Dedication

Named in memory of Riley, and for Feebee, her sister and bondmate. Without your love and support, this project would never have happened.
