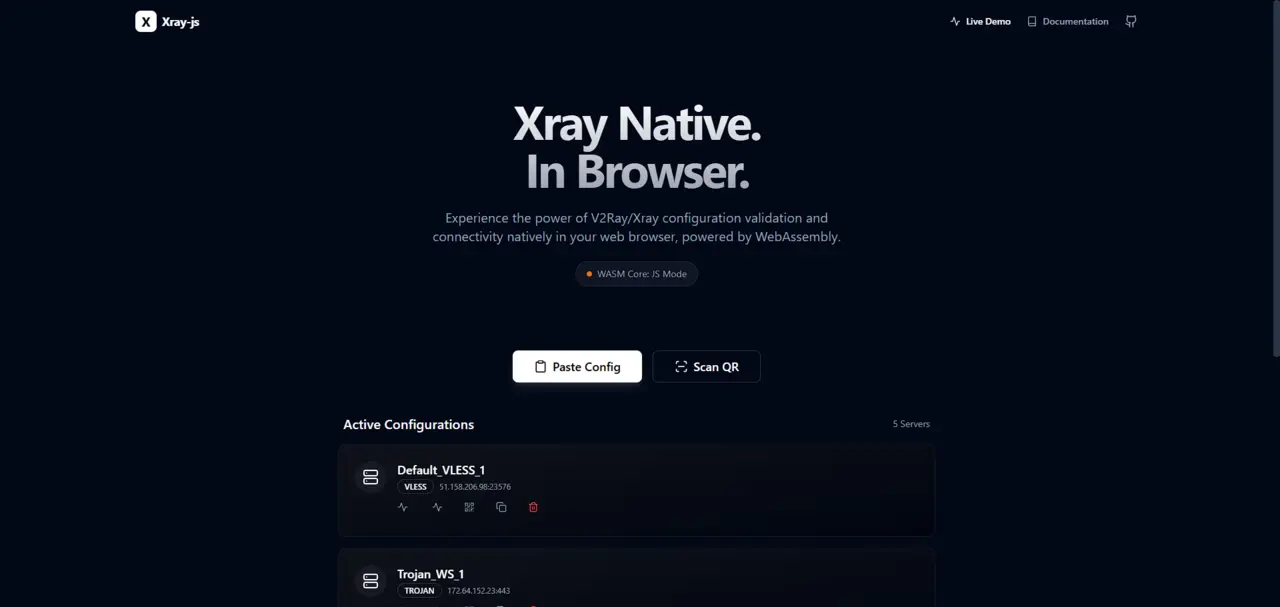

Xray-js Live Demo

A modern, responsive React application demonstrating Xray-core features directly in the browser using WebAssembly (WASM).

🚀 Live Demo

View Live Demo This project is built by compiling the actual Xray-core source code into WASM, creating a secure, client-side playground with an intelligent code editor.

✨ Key Features

• Native Validation: Uses the real Xray-core logic via WebAssembly to parse configurations, ensuring 100% accuracy compared to the native binary.
• Intelligent Editor: Embedded code editor features syntax highlighting, auto-completion, and hovering documentation based on the Xray schema.
• Client-Side Privacy: Your configurations are processed entirely in your browser's memory using WASM. No sensitive config data is sent to any backend server.
• Shareable Configurations: Generate short, Brotli-compressed links to share complex configurations with others securely and easily.
• Cross-Platform Logic: Patched Go code removes system-level dependencies (like raw sockets), allowing the core routing logic to run on any modern web browser.

📁 Project Structure

The project is organized to separate the Go/WASM backend logic from the frontend presentation.

/xray-js
├── assets/             # Temporary folder for downloaded Xray source and GeoIP data
├── scripts/            # Build scripts for Node.js
├── main.go             # The Go entry point interfacing between JS and Xray-core
├── main.wasm           # The compiled binary (generated after build)
├── index.html          # Main frontend UI and Monaco Editor logic
├── wasm_exec.js        # Go WebAssembly loader script
├── scrape-docs.py      # Python script to generate JSON schema from docs
├── build.ps1           # Windows build automation script
├── build.py            # Python build automation script
├── Makefile            # Linux/macOS build commands
├── Justfile            # Rules for "just" command runner
├── package.json        # Node.js configuration and scripts
└── xray.schema.json    # Generated validation schema for the editor

⚙️ How to Run the Project

To get a local copy up and running, follow these simple steps.

1. Clone the repository:

   git clone https://github.com/IMROVOID/xray-js.git

2. Navigate to the project directory:

   cd xray-js

3. Build the WASM binary (Requires Go 1.22+):

   • Linux/macOS:

     make build

   • Windows (PowerShell):

     .\build.ps1

   • Node.js:

     npm install
     npm run build

   • Python:

     python3 build.py

   • Just:

     just build

4. Run the local server:

   • Node.js (Recommended):

     npm run dev

     The application will be available at http://localhost:5173.

   • Python:

     python3 -m http.server

     The application will be available at http://localhost:8000.

🔧 How to Modify the Page

This project was designed to be easily customizable. Here’s how you can modify its key parts:

• Xray Logic: The Go-to-JS bridge is located in main.go. Modifications to the core require applying changes to xray-wasm.patch.
• Editor Configuration: To change the editor theme, snippets, or validation rules, modify the script section in index.html.
• Validation Schema: If Xray updates its configuration format, run python3 scrape-docs.py to regenerate xray.schema.json.
• Styling: All CSS styles for the glassmorphic UI and layout are defined within the <style> block in index.html.

🛠️ Technologies & Libraries Used

This project leverages several powerful tools to bring a system-level binary to the web.

Library	Link	Description
WebAssembly	webassembly.org	A binary instruction format that allows Go code to run in the browser at near-native speed.
Go (Golang)	go.dev	The programming language used to build Xray-core and the WASM bridge.
Xray-core	github.com/xtls/xray-core	The core networking platform and configuration logic.
Brotli-WASM	github.com/google/brotli	Used for high-efficiency compression of configuration strings for sharing.
FontAwesome	fontawesome.com	Beautiful & consistent icons for the UI buttons.

🚀 Deployment to GitHub Pages

This repository includes a GitHub Actions workflow for automated deployment.

1. Configure Repository:

   • Go to Settings > Pages.
   • Set Source to GitHub Actions.

2. Trigger Deployment:

   • The workflow is defined in .github/workflows/deploy.yml.

   • Simply push to the main branch:

     git push origin main

3. Automatic Build:

   • GitHub Actions will automatically set up Go, build the main.wasm binary, generate the schema, and deploy the artifacts.
   • Your site will be live at https://<your-username>.github.io/xray-js/ within a few minutes.

---

📜 License

This project is open-source and licensed under the GNU General Public License v3.0 (GPL-3.0).

Summary of Key Requirements

The GPL-3.0 is a strong copyleft license that ensures the software remains free. If you use, modify, or distribute this code, you must adhere to the following:

• Disclose Source: You must make the source code available when you distribute the software.
• License & Copyright Notice: You must include a copy of the license and the original author's copyright notice.
• Same License (Copyleft): Any modifications or derived works must also be licensed under GPL-3.0.
• State Changes: You must clearly indicate if you have modified the original files.
• No Warranty: This software is provided "as is" without any warranty of any kind.

This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

For full details, please refer to the LICENSE file in this repository.
