feat(ui): design tokens 4/5 — semantic border-radius scale

[JSONbored]

Summary

Phase 1 audit + proposed table posted as a comment on #7843 (occurrence census across both packages, archetype→radius mapping with two justified adjustments and one documented exception carve-out). Phase 2 (this PR) executes the approved sweep:

• rounded-sm → rounded (35 sites), rounded-lg → rounded-md (60 sites) — mechanical, exact-token renames via perl -pi, verified with an occurrence-count check (0 remaining of either class) and a duplicate-collision check (no rounded rounded/rounded-md rounded-md artifacts).
• packages/ui-kit/src/components/metagraphed/page-section.tsx's muted-tone rounded-2xl → rounded-xl — <PageSection> is a general page-content wrapper (used in gaps.tsx, schemas.tsx, the health dashboard), not hero-specific, so it belongs in the "large surface" tier next to drawers/modals. -health-page.tsx's sectionRing() active-state ring (which outlines whichever <PageSection> a deep-link scrolled to) moves to rounded-xl in lockstep so the ring stays visually paired with its section.
• Confirmed rounded-2xl is otherwise confined to the homepage hero family (hero-feature-row.tsx, -index-page.tsx) and the documented .mg-card-glow/.mg-card-glow-accent detail-page KPI-panel pattern (accounts.$ss58.tsx and validators.$hotkey.tsx hardcode ~21 raw rgba(...) shadow colors instead of the design system's color-mix idiom #6398 — already an explicit ESLint exemption elsewhere in the same config, not new drift).
• Left the 10 dense-grid rounded-[1px]/rounded-[2px] micro-radius sites (heatmaps, status mosaic, endpoint-uptime bar) as a documented residual rather than force-fitting them into the scale — every named step is visually far larger and would materially change these per-cell fills. Matches the existing residual-worklist convention the z-index rule already uses for the compare-drawers' z-[1]/z-[2] sites.
• Adds a warn-tier no-restricted-syntax rule to both eslint.config.ts files flagging rounded-(sm|lg|3xl) and arbitrary rounded-[…]. Caught and fixed a real self-match false positive during development: the rule's own message text initially spelled out rounded-sm/rounded-[…] as literal examples, which matched the very selector it was documenting inside the config file itself — same root-cause class as the existing hex-color rule's GitHub-issue-reference false positive. Rewrote both messages to describe the violation without a literal contiguous match.
• Documents the approved 5-step radius table in apps/ui/CONTRIBUTING.md (rounded-full / rounded / rounded-md / rounded-xl / rounded-2xl, with the two exceptions above called out).

Test plan

• tsc --noEmit clean in both packages
• eslint . in both packages: 0 errors (388 warnings in apps/ui, 43 in ui-kit — 9 are the documented dense-grid residual, the rest pre-existing and unrelated)
• prettier --check clean on all touched files
• vitest run: 1464/1464 passing in apps/ui, 98/98 passing in ui-kit
• Live-browser check: /subnets renders correctly with no console errors attributable to this change (one pre-existing, unrelated hydration warning about FinancialTrendCell's dynamic text-[10px] USD/pct timing, not touched here); confirmed rounded-md computes to a real 10px border-radius across 218 live elements on the page, proving the class swap compiles and applies correctly, not just present as dead text.

Closes #7843.

[superagent-security]

Superagent didn't find any vulnerabilities or security issues in this PR.

[cloudflare-workers-and-pages]

Deploying with    Cloudflare Workers

The latest updates on your project. Learn more about integrating Git with Workers.

Status	Name	Latest Commit	Preview URL	Updated (UTC)
✅ Deployment successful! View logs	metagraphed-ui	21ee4ac	Commit Preview URL Branch Preview URL	Jul 25 2026, 02:48 AM

[codecov]

Codecov Report

✅ All modified and coverable lines are covered by tests.
✅ Project coverage is 97.71%. Comparing base (6acdac7) to head (21ee4ac).
⚠️ Report is 1 commits behind head on main.
✅ All tests successful. No failed tests found.

Additional details and impacted files

@@           Coverage Diff           @@
##             main    #8102   +/-   ##
=======================================
  Coverage   97.71%   97.71%
=======================================
  Files         282      282
  Lines       27614    27614
  Branches    10831    10831
=======================================
  Hits        26984    26984
  Misses        141      141
  Partials      489      489

🚀 New features to boost your workflow:

• 📦 JS Bundle Analysis: Save yourself from yourself by tracking and limiting bundle sizes in JS merges.

[loopover-orb]

Warning

⏸️ LoopOver review result - manual review recommended

_{Review updated: 2026-07-25 03:00:24 UTC}

68 files · 1 AI reviewer · no blockers · CI green · clean

⏸️ Suggested Action - Manual Review

• Touches a guarded path — held for manual review: This PR changes guardrail-protected path(s): apps/ui/CONTRIBUTING.md (matched apps/ui/**), apps/ui/eslint.config.ts (matched apps/ui/**), apps/ui/src/components/metagraphed/analytics/coverage-matrix.tsx (matched apps/ui/**), apps/ui/src/components/metagraphed/analytics/incidents-timeline.tsx (matched apps/ui/**), apps/ui/src/components/metagraphed/analytics/network-pulse-band.tsx (matched apps/ui/**), and 50 more.

Review summary
Mechanical, correctly-scoped design-token sweep: `rounded-sm`→`rounded` and `rounded-lg`→`rounded-md` renames plus one justified `rounded-2xl`→`rounded-xl` adjustment on `PageSection`/`sectionRing`, backed by two new ESLint `no-restricted-syntax` warn-rules (mirrored in both `eslint.config.ts` files) and a CONTRIBUTING.md radius table. The full `apps/ui/eslint.config.ts` content confirms `RADIUS_RULES` is correctly spread into the `src/**` rules array, and the self-match hazard noted in the comments is real but avoided (messages don't contain literal `rounded-X` substrings). This is a token-rename PR with no behavioral logic, so the 0-test-file ratio is expected and not a defect.

Nits — 8 non-blocking

• The `ui` CI check failed with no detail provided; per the base-branch-status guidance this can't be attributed to a specific content defect from what's given here — worth checking before merge, but not a code defect per se.
• The linked issue Design tokens 4/5: semantic border-radius scale (~832 sites) #7843 covers a ~832-site sweep and this PR is flagged as only partial coverage — confirm the remaining `rounded-sm`/`rounded-lg` occurrence count is genuinely zero (per the PR's own described verification step) rather than a partial pass, since the external history flags 'partial' issue coverage.
• `dialog.tsx`/`sheet.tsx`/`command.tsx` (shadcn primitives) also had their `rounded-sm`→`rounded` renames applied — worth double-checking these don't diverge from upstream shadcn's own class names in a way that complicates future upstream syncs.
• Since this is a pure mechanical rename with an automated occurrence-count + duplicate-collision verification already described in the PR body, no further diff-level changes seem needed.
• Consider whether the eslint rule's dense inline comments (multiple paragraphs per rule) could be trimmed per the repo's comment-density convention, though this matches the style of the adjacent existing rules (Z_INDEX_RULES, GLASS_SURFACE_RULES) so it's consistent, not a deviation.
• PR author also opened the linked issue — Link an issue that was opened by a different contributor, or provide a rationale for why this self-authored issue represents genuine discovery work.
• Code changes lack test evidence — Add focused regression tests or explain why existing coverage is sufficient.
• Touches a guarded path — held for manual review — A maintainer must review and merge this change.

Decision drivers

• ✅ Code review — No blockers (1 reviewer)
• ⚠️ Gate result — Not blocking (Advisory; not blocking this PR.)

Context & advisory signals — never blocks the verdict

Signal	Result	Evidence
Linked issue	✅ Linked	#7843
Related work	✅ No active overlap found	No same-issue or scoped active PR overlap found.
Change scope	✅ 20/20	Low review scope from cached public metadata (1 linked issue).
Validation posture	✅ 25/25	PR body includes validation/test evidence.
Contributor workload	✅ 10/10	Author activity: 13 registered-repo PR(s), 13 merged, 271 issue(s).
Contributor context	✅ Confirmed Gittensor contributor	JSONbored; Gittensor profile; 13 PR(s), 271 issue(s).

Linked issue satisfaction

Addressed
The PR mechanically sweeps rounded-sm→rounded and rounded-lg→rounded-md across both packages, adds warn-tier ESLint guardrails against the eliminated classes and arbitrary rounded-[…] in both eslint.config.ts files, and documents the approved radius table in apps/ui/CONTRIBUTING.md, matching the issue's Phase 2 asks; it also justifies its two deviations (page-section.tsx to rounded-xl, dense-grid

Review context

• Author: JSONbored
• Role context: owner (maintainer lane)
• Public audience mode: oss maintainer
• Lane context: Repository is configured for direct PR review.
• Public profile languages: not available
• Official Gittensor activity: 13 PR(s), 271 issue(s).
• PR-specific overlap: none found.

Contributor next steps

• Start here: Treat this as maintainer-lane context rather than normal contributor-lane activity.

Signal definitions

• Related work = same linked issue, overlapping active PRs, or title/path similarity.
• Change scope = cached public metadata such as size labels, draft state, and review-burden hints.
• Validation posture = whether the PR provides enough public validation/test evidence for maintainer review.
• Contributor workload = public contributor activity and cleanup pressure, not a repo-wide quality failure.
• Contributor context = public GitHub/Gittensor identity context; non-Gittensor status is not a blocker.

🧪 Chat with LoopOver

Ask LoopOver a question about this PR directly in a comment — grounded only in the same cached, public-safe facts shown above, never a new claim.

• @loopover ask <question> answers contribution-quality Q&A with source citations and freshness.
• @loopover chat <question> answers in natural prose from cached decision-pack facts via local inference (maintainer/collaborator; read-only).
• A plain-language @loopover mention with a real question is routed to the closest matching read-only command automatically — no exact syntax required.

Full command reference: https://loopover.ai/docs/loopover-commands

🧪 Experimental — new and may change.

Visual preview

Route	Viewport	Before (production)	After (this PR's preview)	Diff

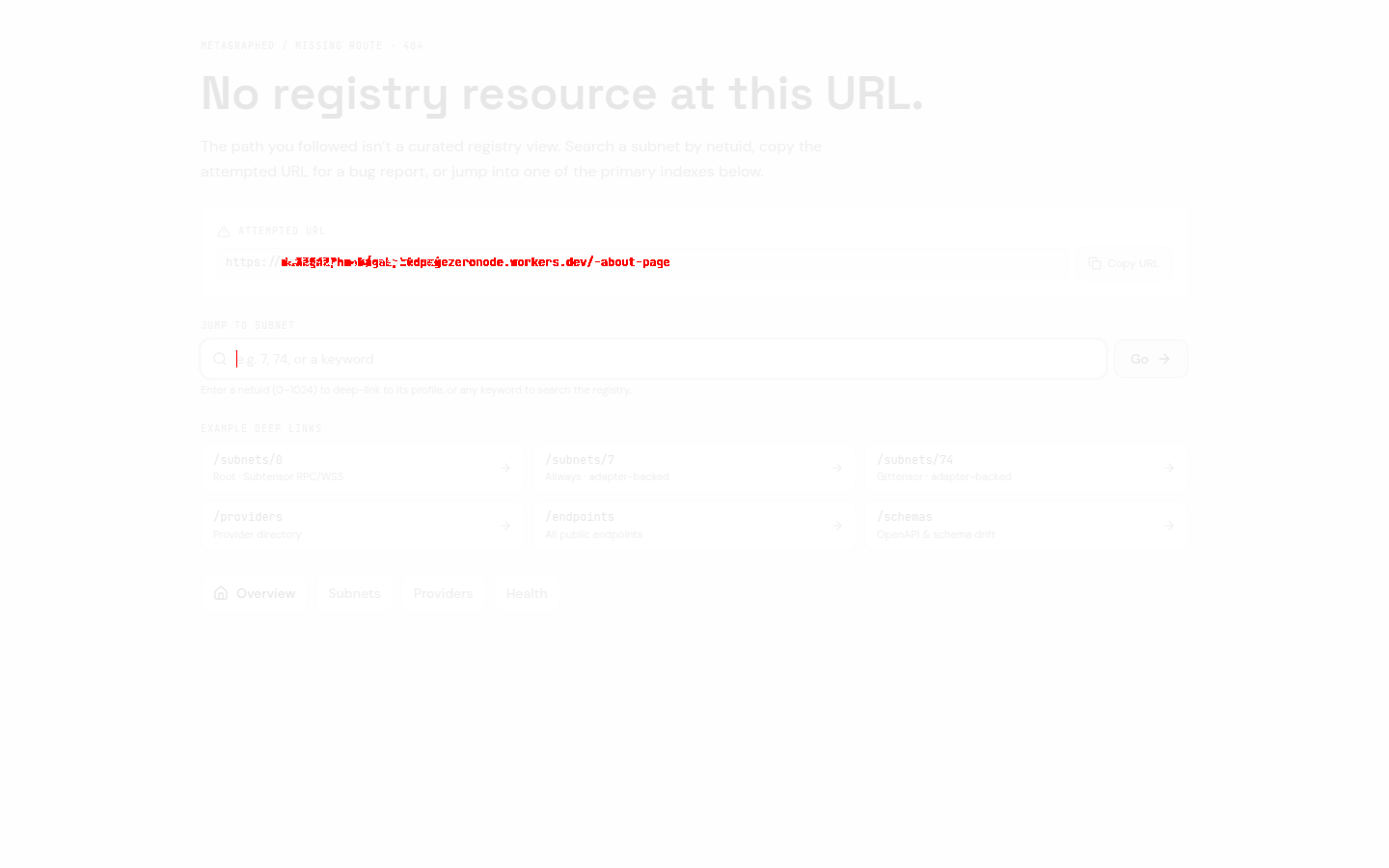

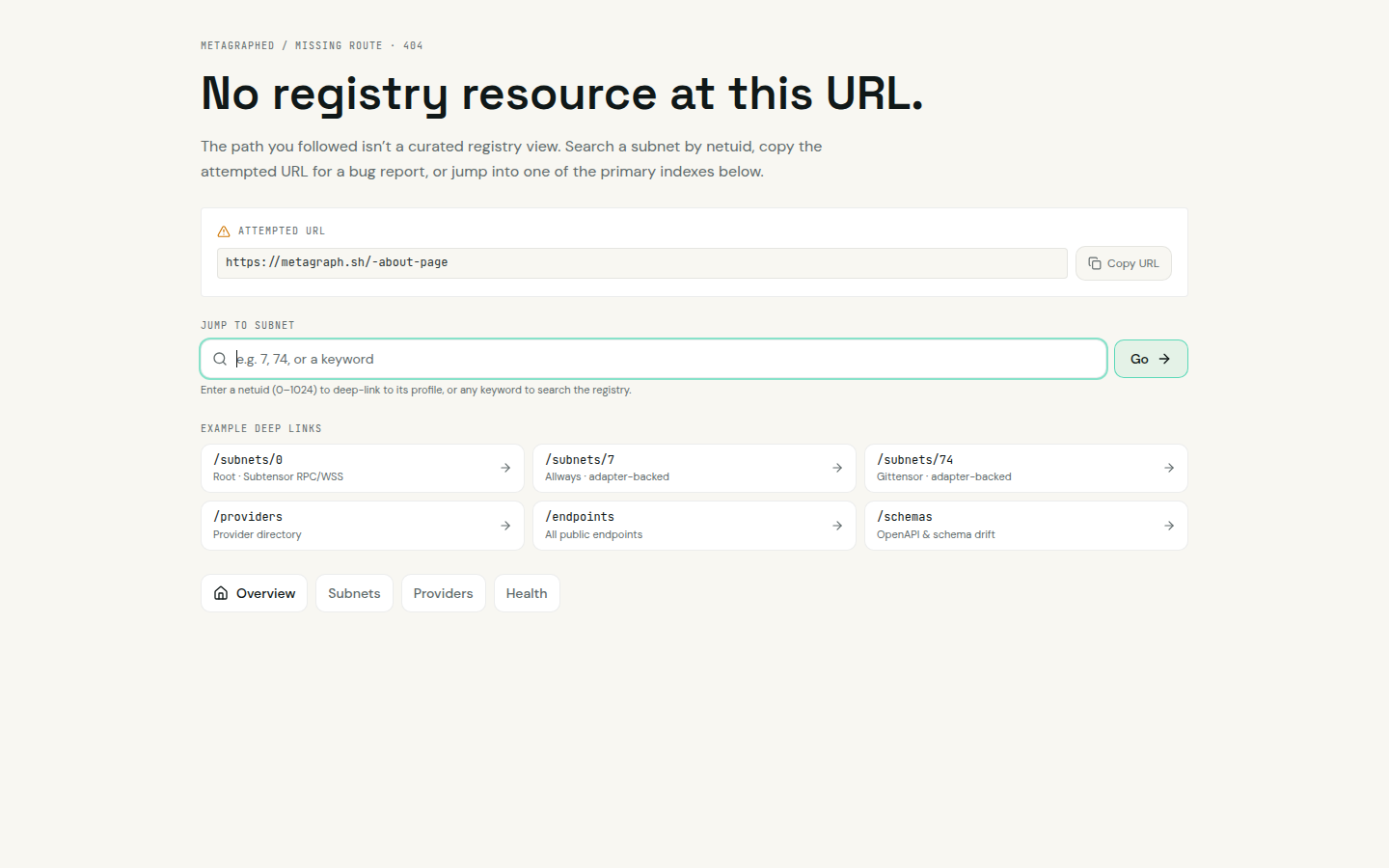

/-about-page	desktop	before /-about-page	after /-about-page	diff /-about-page

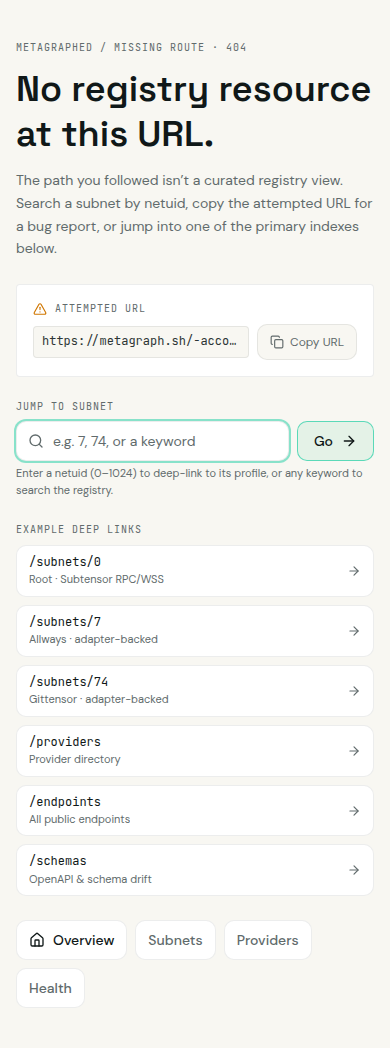

/-about-page	mobile	before /-about-page (mobile)	after /-about-page (mobile)	diff /-about-page (mobile)

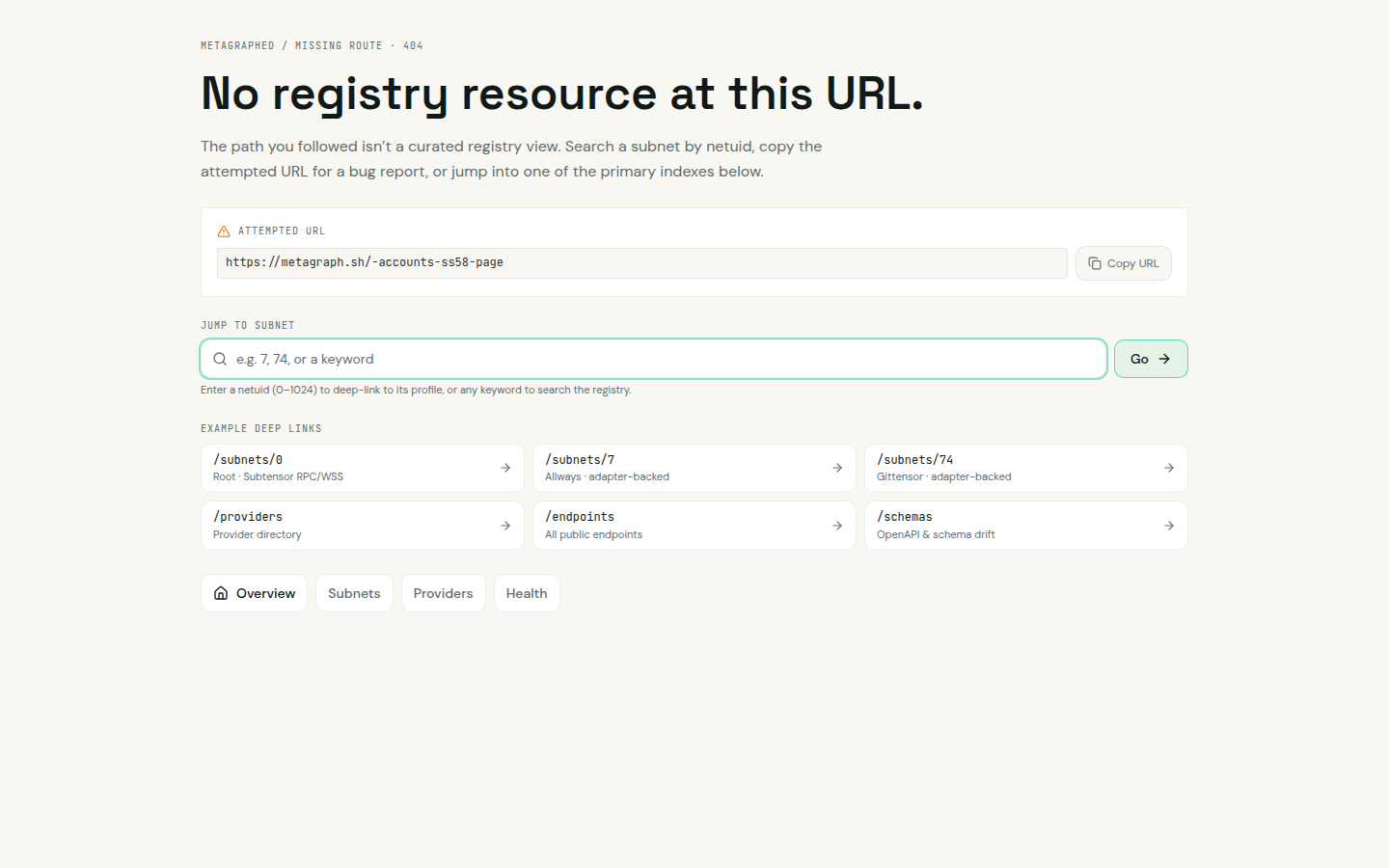

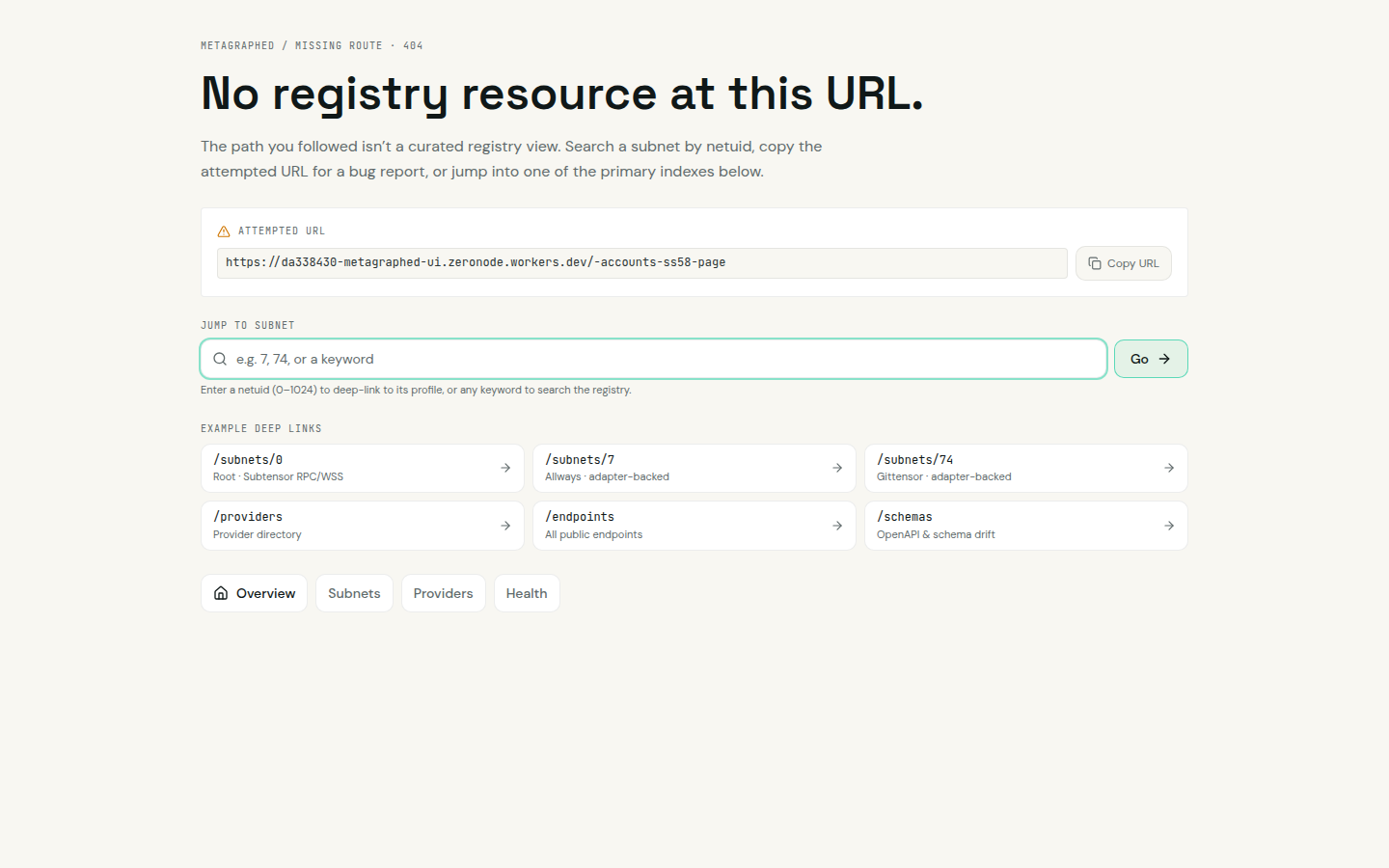

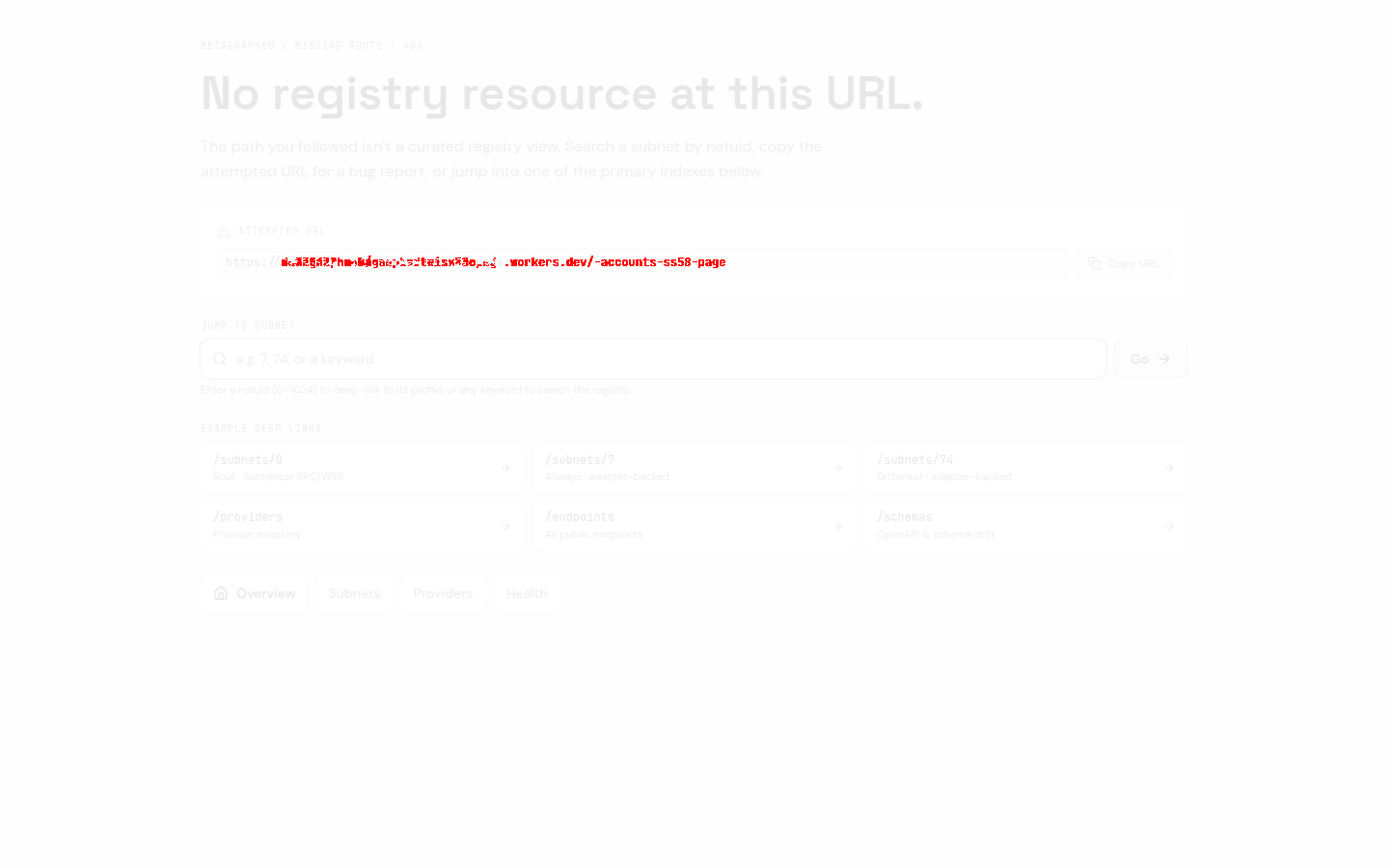

/-accounts-ss58-page	desktop	before /-accounts-ss58-page	after /-accounts-ss58-page	diff /-accounts-ss58-page

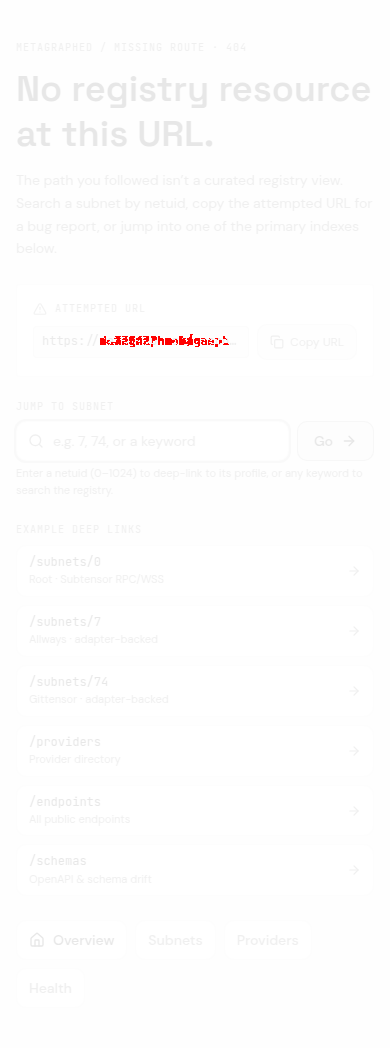

/-accounts-ss58-page	mobile	before /-accounts-ss58-page (mobile)	after /-accounts-ss58-page (mobile)	diff /-accounts-ss58-page (mobile)

Click any thumbnail to open the full-size screenshot. Before = production · After = this PR's preview deploy · Diff highlights exactly what changed.

Scroll preview

Route	Before (production)	After (this PR's preview)
/-about-page	before /-about-page (scroll)	after /-about-page (scroll)

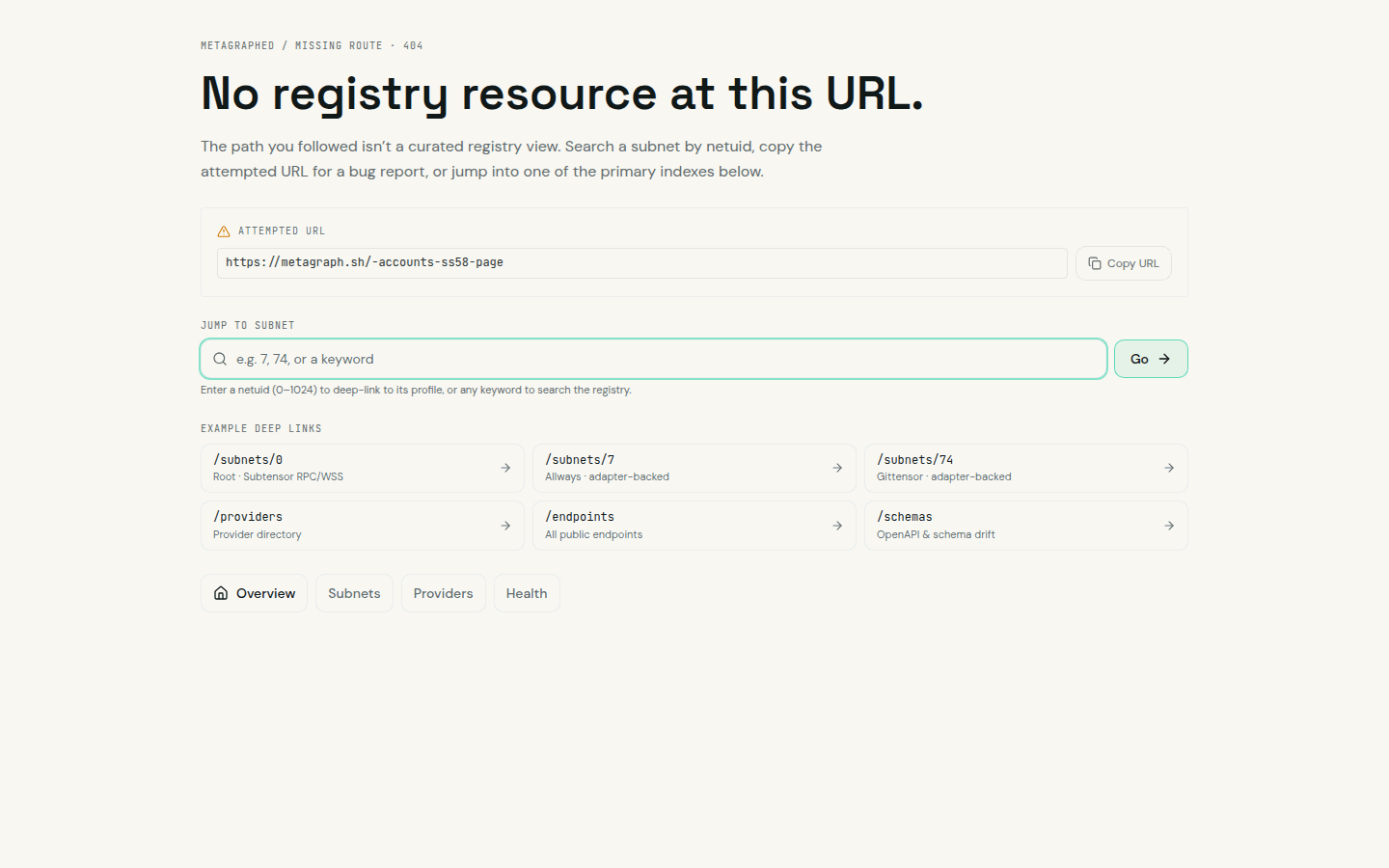

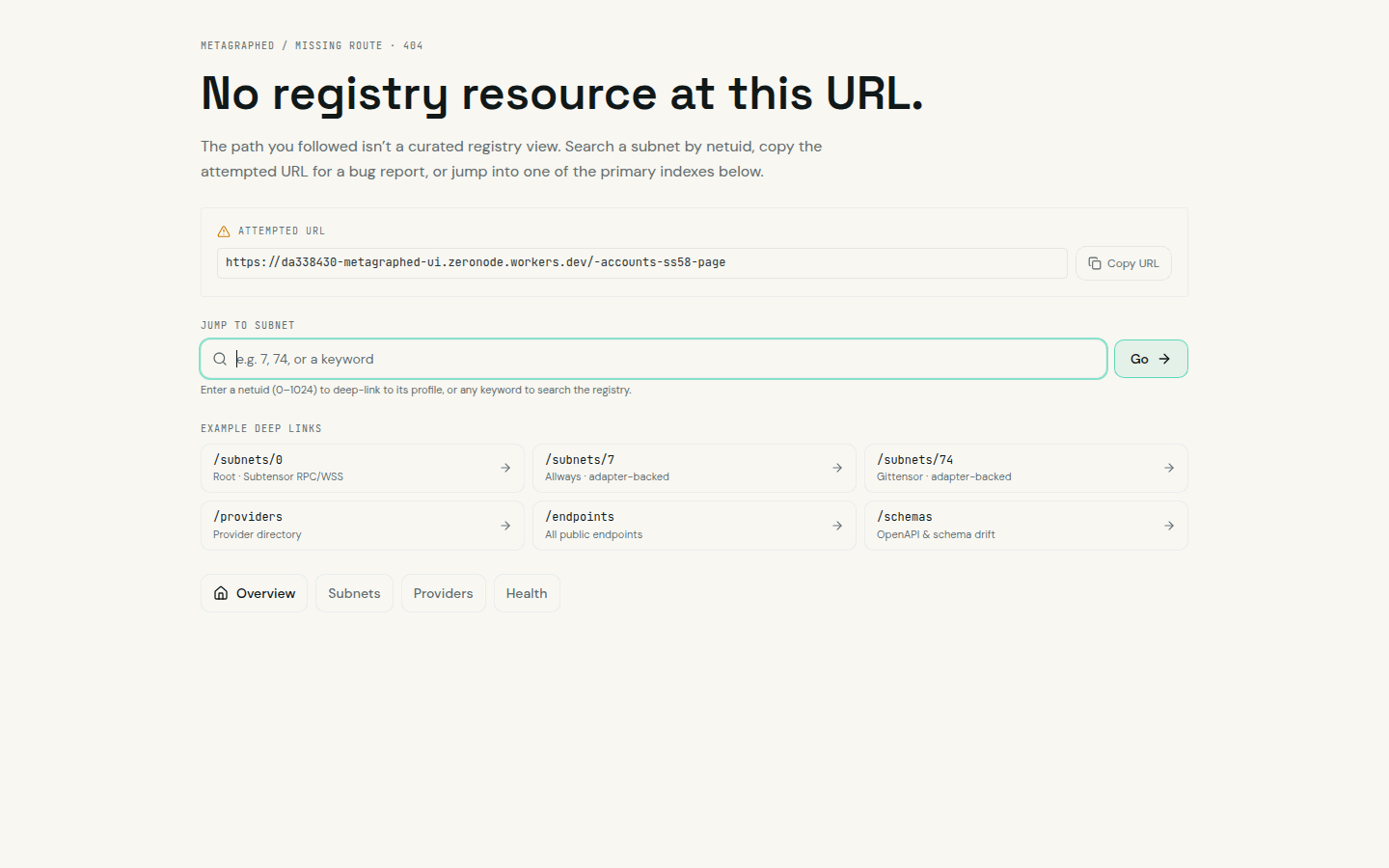

/-accounts-ss58-page	before /-accounts-ss58-page (scroll)	after /-accounts-ss58-page (scroll)
