LiteReality: Graphics-Ready 3D Scene Reconstruction from RGB-D Scans

NeurIPS 2025

Zhening Huang¹, Xiaoyang Wu², Fangcheng Zhong¹, Hengshuang Zhao², Matthias Nießner³, Joan Lasenby¹

¹University of Cambridge   ²The University of Hong Kong   ³Technical University of Munich

📢 News

• [2026-01-19] LiteReality code is out! Test it with the example scans (Instruction, results visualization), or your own scans!
• [2025-09-18] LiteReality has been accepted at NeurIPS 2025!
• [2025-07-03] Our paper is now available on arXiv! Check out the video demo.

---

🎬 Results on Example Scans

We tested this codebase with several example scans; here are some of the results (Left:RGB, Right:LiteReality Reconstruction). Click on any thumbnail to watch the full video 🎬.

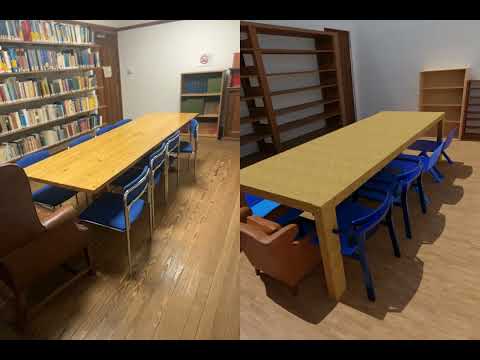

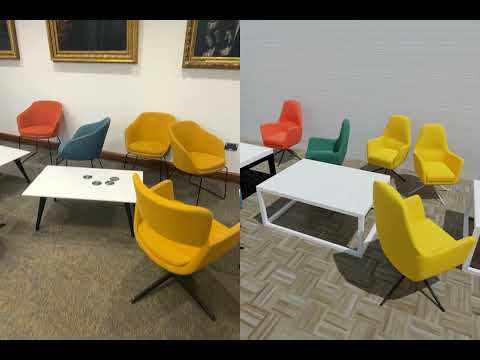

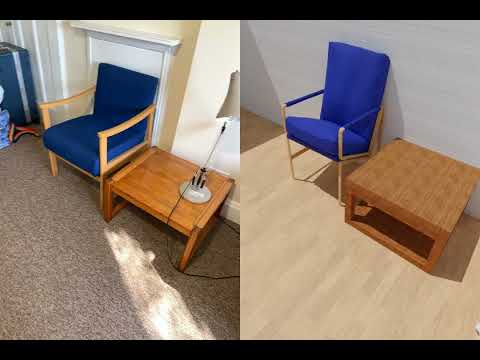

Girton Study Room	Darwin BedRoom	CUED BoardRoom

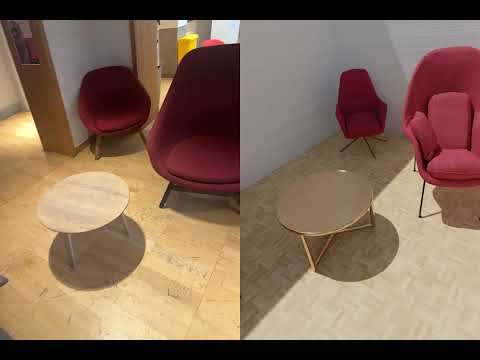

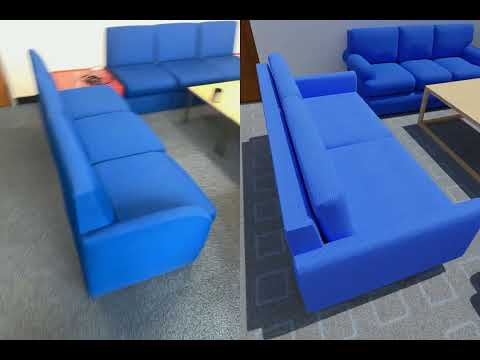

Girton Study Room 2	Girton Common Room	SigProc Tea Room

---

🛠 Prerequisites

• Linux machine
• Conda
• NVIDIA RTX-enabled GPU (≥ 24 GB VRAM)
• CUDA 12.x or 11.x

⚙️ Installation

1. Create Conda Environment

git clone https://github.com/LiteReality/LiteReality.git
cd LiteReality

conda create -n litereality python=3.9 -y
conda activate litereality

pip install torch torchvision torchaudio --index-url https://download.pytorch.org/whl/cu124
pip install -e .

2. Install GroundingDINO

Note: The GroundingDINO code in this repository includes patches for compatibility with PyTorch 2.5.1+ and CUDA 12.4.

mkdir third_party
cd third_party
git clone https://github.com/IDEA-Research/GroundingDINO.git
cp ../litereality/utils/setup_grounding_dino.py GroundingDINO/setup.py # replace setup.py with this file for easy installation

cd GroundingDINO

# Install dependencies
pip install -r requirements.txt
conda install -c conda-forge gcc=13 gxx=13 -y
pip install -e . --no-build-isolation
cd ../..

If issues persist, please refer to the official GroundingDINO repository.

3. Download Pretrained Weights

This script downloads weights for CLIP, DinoV2, Qwen-VL-8B-Instruct, and SAM.

python litereality/utils/download_pretrained_weights.py

4. Install Blender

bash litereality/utils/install_blender.sh

---

📊 Data Preparation

1. Download LiteReality Database

(This might take quite a while!)

This downloads and extracts the material database (~200 GB) to ./litereality_database/.

python litereality/utils/litereality_database_download.py
cp -r asset/pbr_annotations/* litereality_database/PBR_materials/material_lib/annotations/ # Important: Replace the existing annotations with the new annotation JSON files

2. Download Example Scans

This downloads example scans to the ./scans/ directory.

python litereality/utils/download_example_scans.py

---

Test on Example Scans

After downloading the database and example scans, run the full test suite:

bash example_scans_test.sh

Or test on a single example first:

bash script.sh scans/2025_05_05_08_42_28 Darwin_BedRoom

Test on Your Own Scans

1. Prepare Data

Currently, data capture uses Apple RoomPlan on a LiDAR-equipped iPhone. We use the 3D Scanner App to capture full images, depth, camera data, and RoomPlan raw outputs. Following the video below:

2. Run

Once you export all data, save it under the scans/ folder, then run:

bash script.sh scans/{your_scan_name} {scene_name}

Example:

bash script.sh scans/2025_01_20_08_44_07 BoardRoom_CUED

---

📂 Output Structure

🔧 output/mat_painting_stage/

Contains material painting results for each processed scene:

• {scene_name}/ - Per-object material assignments and textures
• {scene_name}_output_gltf/ - GLTF exports with applied PBR materials

📦 output/object_stage/

Contains intermediate object-level processing results:

• {scene_name}/ - Individual reconstructed objects before material painting

🎨 output/whole_scene_model/

Final integrated scene models ready for rendering:

• blender/ - Native Blender project files (.blend) for the reconstructed scene
• glb/ - 3D scene files (.glb) with full PBR materials for the reconstructed scene

🎬 output/whole_scene_render/

Rendered visualizations and videos of the complete scenes:

• videos/ - Side-by-side comparison with the original RGB-D inputs
• rendered_rgbd/ - Rendered images from reconstructed scene

🔍 Process Visualization

Cache files are saved under ./cache/, where you can inspect:

• Scene-graph and parsed scene (before and after)
• Object clustering (e.g., chairs)
• Object retrieval results
• Material painting results

---

🙏 Acknowledgments

The following works have been helpful and inspirational for the creation of LiteReality:

• Make-it-Real: Unleashing Large Multimodal Model for Painting 3D Objects with Realistic Materials
• MatSynth: A Modern PBR Materials Dataset
• Qwen3-VL: Alibaba's Vision-Language Model
• Phone2Proc: Bringing Robust Robots Into Our Chaotic World
• 3D-FUTURE: 3D Furniture Shape with TextURE
• AI2-THOR: An Interactive 3D Environment for Visual AI
• Apple RoomPlan: ARKit 6 framework for 3D floor plans

---

📝 Citation

If you find this project useful for your research, please cite:

@inproceedings{huang2025litereality,
  title={LiteReality: Graphics-Ready 3D Scene Reconstruction from RGB-D Scans},
  author={Zhening Huang and Xiaoyang Wu and Fangcheng Zhong and Hengshuang Zhao and Matthias Nießner and Joan Lasenby},
  booktitle={Advances in Neural Information Processing Systems (NeurIPS)},
  year={2025}
}
