Editor: Add in-editor preview modal by dhanson-wp · Pull Request #78599 · WordPress/gutenberg

dhanson-wp · 2026-05-23T15:10:14Z

What?

Adds a new in-editor Preview modal to the post and page editor.

Instead of requiring users to open a separate browser tab to preview content, this introduces a modal preview layer that opens on top of the current editor and preserves editing context.

The modal includes device preview controls for:

Desktop
Tablet
Mobile

The existing external preview flow remains available from the View dropdown as “Preview in new tab”.

Why?

Previewing content currently requires leaving the editing flow, usually through “Preview in new tab”. Device emulation, View Post, and previewing unsaved changes are also mixed together in ways that can be confusing.

Related issues/discussions:

This PR explores a concrete implementation for improving that experience by making preview feel like a layer within the editor rather than a full context switch.

It also creates a potential foundation for future preview extensions, such as:

Website preview
Email/newsletter preview
Social preview
Paid subscriber / public visitor preview
RSS or print preview
Plugin-provided preview modes

How?

This PR introduces a modal-based preview surface that:

Opens from the editor preview UI.
Displays the current preview route inside the modal.
Provides responsive device controls in the modal header.
Supports Desktop, Tablet, and Mobile preview sizes.
Allows users to close the modal and return to their previous editor context.
Keeps the existing external “Preview in new tab” behavior available from the View dropdown.

Screenshots

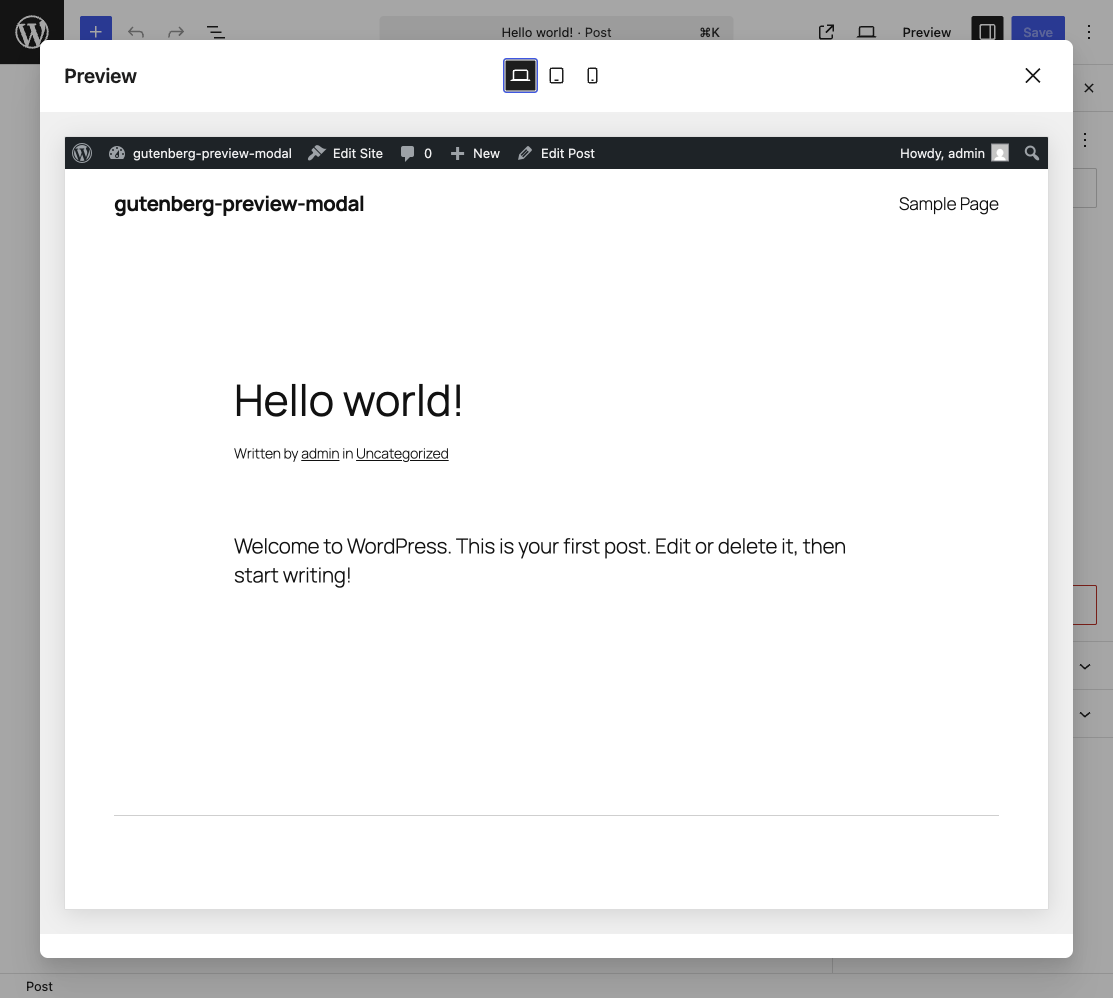

Desktop preview

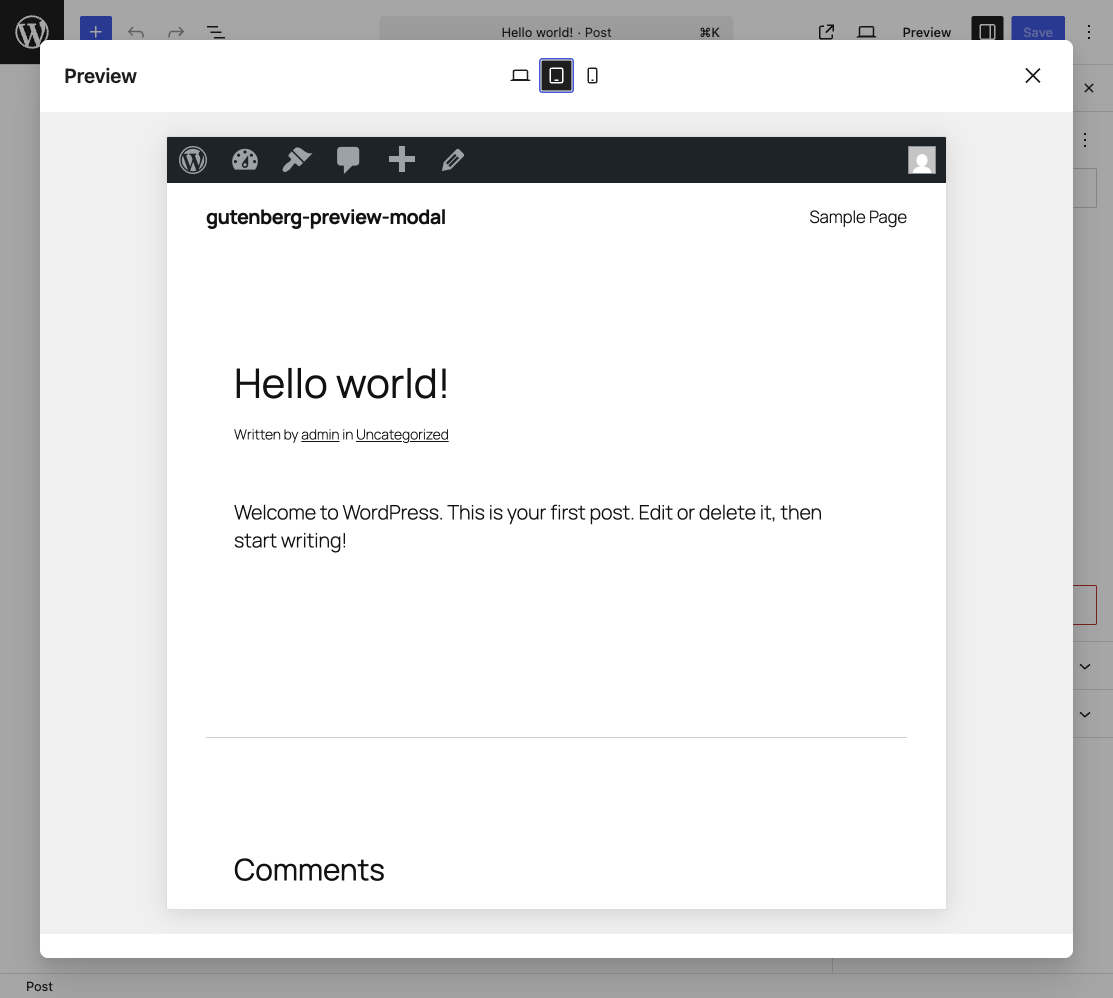

Tablet preview

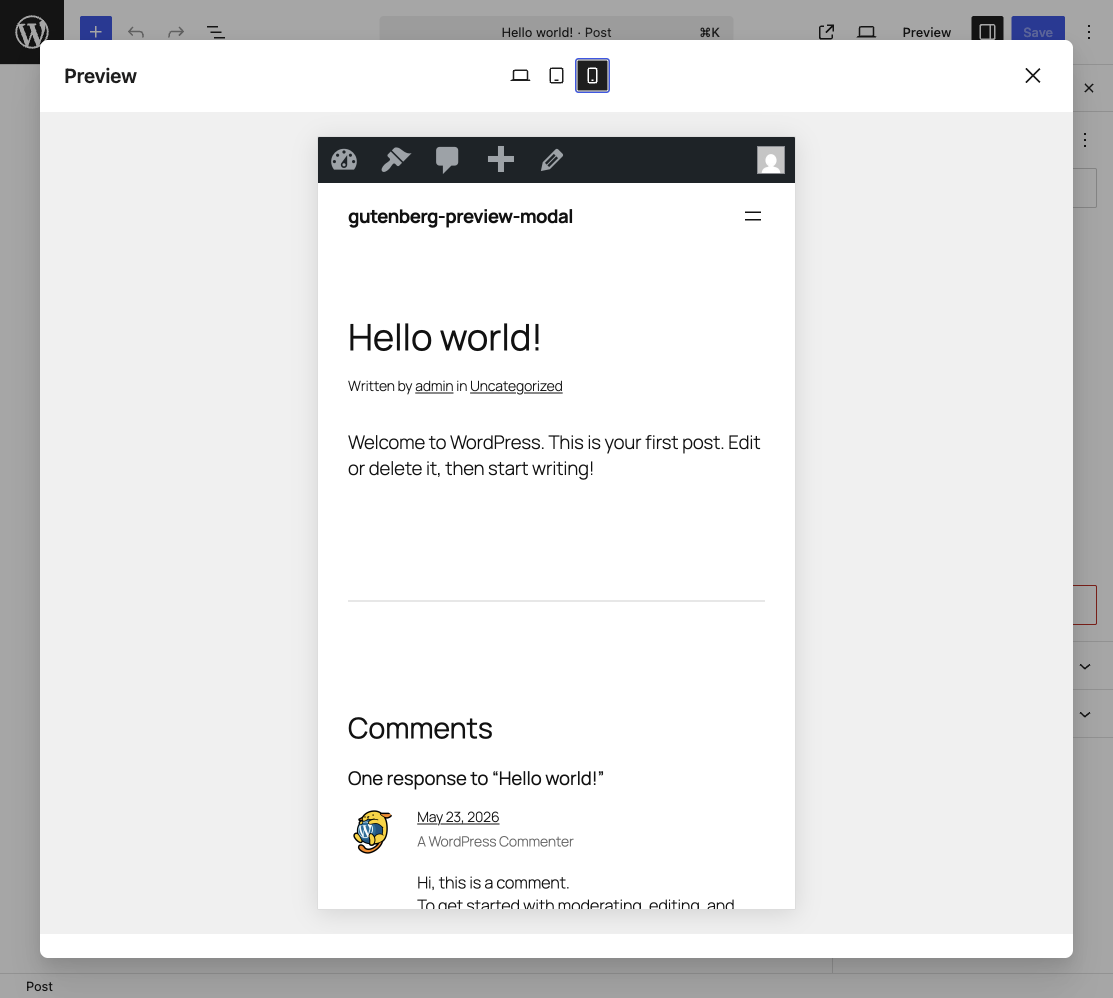

Mobile preview

Testing Instructions

Open the post editor or page editor.
Create or edit a post/page with several blocks.
Click the Preview button in the editor header.
Confirm the preview opens in a modal without navigating away from the editor.
Switch between Desktop, Tablet, and Mobile preview sizes.
Confirm long preview content scrolls inside the modal surface.
Press Escape or use the close button to close the modal.
Confirm focus/context returns to the editor.
Confirm the existing “Preview in new tab” behavior still works from the View dropdown.

Repeat similar checks for:

Page editor
Post editor

Accessibility

Things to verify:

Keyboard focus moves into the modal when it opens.
Focus is trapped inside the modal while open.
Escape closes the modal.
Focus returns to the triggering control after closing.
Device controls are keyboard accessible.
Modal title/label is announced correctly by screen readers.

Notes / follow-up

This PR does not attempt to solve the entire preview extensibility problem described in #65005, but it may provide a core preview surface that future extensibility work could build on.

Potential follow-up questions:

Should plugins be able to register additional preview modes?
Should “Preview in new tab” also live inside the modal, or is the existing View dropdown location enough?
Should this same modal be used consistently across posts, pages, templates, and the Site Editor?
How should this work when previewing templates or full site routes?
Should modal previews visually suppress editor/admin chrome such as the WordPress admin bar?

Validation

npm run test:unit packages/editor/src/components/post-preview-modal-button/test/index.js
npm run lint:js -- packages/editor/src/components/post-preview-modal-button packages/editor/src/components/header/index.js
npm run lint:css -- packages/editor/src/components/header/style.scss packages/editor/src/components/post-preview-modal-button/style.scss
npm run build
Manual browser smoke test in wp-env for opening, switching device sizes, internal scroll, closing with Escape, and preserving the existing external preview option.

github-actions · 2026-05-23T15:10:56Z

👋 Thanks for your first Pull Request and for helping build the future of Gutenberg and WordPress, @dhanson-wp! In case you missed it, we'd love to have you join us in our Slack community.

If you want to learn more about WordPress development in general, check out the Core Handbook full of helpful information.

github-actions · 2026-05-23T17:17:16Z

The following accounts have interacted with this PR and/or linked issues. I will continue to update these lists as activity occurs. You can also manually ask me to refresh this list by adding the props-bot label.

If you're merging code through a pull request on GitHub, copy and paste the following into the bottom of the merge commit message.

Co-authored-by: dhanson-wp <dhansondesigns@git.wordpress.org>
Co-authored-by: ramonjd <ramonopoly@git.wordpress.org>
Co-authored-by: simison <simison@git.wordpress.org>

To understand the WordPress project's expectations around crediting contributors, please review the Contributor Attribution page in the Core Handbook.

ramonjd

👋🏻 Thanks for the PR.

I just wanted to link to the PRs/issues below mostly, but it turned into a drive by test 😄

I was going to say, it could be handy to keep an eye on what's happening around configurable breakpoints and responsive block styles.

ramonjd · 2026-05-25T02:17:45Z

+						{ ! isGeneratingPreview && previewUrl && (
+							<iframe
+								className={ `editor-post-preview-modal__iframe is-${ device }-preview` }
+								src={ previewUrl }


Is the admin header useful in the preview?

Not really. I wanted to hide the admin bar, but kept the PR focused on just the main interaction to start.

It's easy to hide with a query arg, so worth doing here:

const src = addQueryArgs( previewUrl, { wp_site_preview: 1, } );

ramonjd · 2026-05-25T02:17:49Z

-.editor-header__post-preview-button {
-	@include break-mobile {
-		display: none;
-	}
-}


What's the history of this button? Presumably it was only shown in mobile for a reason?

Rather than permanently add this item to the header, maybe we could rethink how to use the current preview buttons.

There are currently 2.

The current preview buttons are specific for editing and not true previews in context. This PR is intended to replace the Preview in new tab option. I do like making the Preview more prominent, though, because having it in that icon dropdown feels quite hidden. It's not a hard requirement in my mind. We could simply replace the external link and just call it Preview, then it opens the modal.

ramonjd · 2026-05-25T02:18:37Z

+							role="toolbar"
+							aria-label={ __( 'Preview size' ) }
+						>
+							{ DEVICES.map( ( { name, label, icon } ) => (


It might be handy to default to the editor's device preview value (if one is set).

Like so:

const deviceType = useSelect( ( select ) => { return select( 'core/editor' ).getDeviceType(); }, [] );

simison · 2026-05-27T08:00:09Z

+.editor-post-preview-modal {
+	.components-modal__content {
+		display: flex;
+		flex-direction: column;
+		overflow: hidden;
+		padding: 0;
+	}
+
+	.components-modal__children-container {
+		display: flex;
+		flex: 1;
+		flex-direction: column;
+		min-height: 0;
+	}
+}


It would be best not to override component styles like this, and instead use e.g. Stack inside the modal contents.

simison · 2026-05-27T08:03:23Z

+	align-items: center;
+	align-self: stretch;
+	color: $gray-700;
+	display: flex;
+	flex: 1;
+	flex-direction: column;
+	gap: $grid-unit-10;
+	justify-content: center;
+	text-align: center;


These styles can be replaced by Stack component from @wordpress/ui.

simison · 2026-05-27T08:10:11Z

+	display: flex;
+	flex: 1;
+	justify-content: center;
+	min-height: 0;


You can use Stack component to replace these styles.

simison · 2026-05-27T08:13:16Z

+const DEVICES = [
+	{
+		name: 'desktop',
+		label: __( 'Desktop' ),
+		icon: desktop,
+	},
+	{
+		name: 'tablet',
+		label: __( 'Tablet' ),
+		icon: tablet,
+	},
+	{
+		name: 'mobile',
+		label: __( 'Mobile' ),
+		icon: mobile,
+	},
+];


Would be good to share these with the preview dropdown so they're not defined twice (plus a few more times in other places).

They're already drifting here to be slightly different for no reason:

gutenberg/packages/editor/src/components/preview-dropdown/index.js

Lines 98 to 121 in 5eb51cc

/**

* The choices for the device type.

* Duplicated in block-editor block-visibility constants and edit-site

* use-viewport-sync. Update all three when adding new viewport types.

*

* @type {Array}

*/

const choices = [

{

value: 'Desktop',

label: __( 'Desktop' ),

icon: desktop,

},

{

value: 'Tablet',

label: __( 'Tablet' ),

icon: tablet,

},

{

value: 'Mobile',

label: __( 'Mobile' ),

icon: mobile,

},

];

simison · 2026-05-27T08:13:50Z

+
+.editor-post-preview-modal__toolbar {
+	align-items: center;
+	display: flex;


You can use Stack component to replace these styles.

simison · 2026-05-27T08:14:28Z

+							<div
+								className="editor-post-preview-modal__error"
+								role="alert"
+							>
+								{ __(
+									'The preview could not be generated. Please try again.'
+								) }
+							</div>


Could use Notice component from @wordpress/ui here.

simison · 2026-05-27T08:14:43Z

+						{ isGeneratingPreview && (
+							<div className="editor-post-preview-modal__loading">
+								<Spinner />
+								<p>{ __( 'Generating preview…' ) }</p>


Could use Text component from @wordpress/ui here.

simison · 2026-05-27T08:31:59Z

+	const [ isGeneratingPreview, setIsGeneratingPreview ] = useState( false );
+	const [ previewUrl, setPreviewUrl ] = useState();
+	const [ previewError, setPreviewError ] = useState();
+	const [ device, setDevice ] = useState( 'desktop' );


I'm not sure how UX would be impacted, but it would be worth testing how it would feel if the selected device is shared between the dropdown and the modal.

simison · 2026-05-27T08:33:59Z

+	height: calc(100% - #{ $grid-unit-50 * 2 });
+	max-height: none;
+	max-width: none;
+	width: calc(100% - #{ $grid-unit-50 * 2 });


Do we need these style overrides if you're already setting isFullScreen? Modal also has a size prop in case it helps ("small", "fill", "large", "medium"). Preferably, we don't do component overrides.

Surprised to see the footer skrim regardless of various overriding styles;

simison · 2026-05-27T08:34:38Z

+.editor-post-preview-modal__iframe.is-desktop-preview {
+	width: min(100%, 1200px);
+}
+
+.editor-post-preview-modal__iframe.is-tablet-preview {
+	width: 781px;
+}
+
+.editor-post-preview-modal__iframe.is-mobile-preview {
+	width: 479px;
+}


A bit surprised that these wouldn't come from some shared definition 🤔

If they need to be kept duplicate/separate, would be good to note where else they need to be updated (and vice versa) so that they don't drift.

simison · 2026-05-27T08:35:50Z

+				<VisuallyHidden render={ <span /> }>
+					{ __( '(opens in a modal)' ) }
+				</VisuallyHidden>


Is this accessibility note really needed? I understand it for a new tab but surprised to see it for a modal; I don't think we do that elsewhere in codebase?

simison · 2026-05-27T08:36:13Z

+							<iframe
+								className={ `editor-post-preview-modal__iframe is-${ device }-preview` }
+								src={ previewUrl }
+								title={ __( 'Post preview' ) }


Should this copy adjust based on page/post?

simison · 2026-05-27T08:40:18Z

 import DocumentTools from '../document-tools';
 import HeaderSkeleton from './header-skeleton';
 import MoreMenu from '../more-menu';
-import PostPreviewButton from '../post-preview-button';


The button is a stable API exported (and documented here) from the package, so it would be important to continue supporting it. Modal version has to be separate component.

simison · 2026-05-27T08:41:43Z

I left some comments on implementation, but for the feasibility of this functionality change, I added @mtias and @jasmussen to comment.

Add post preview modal

8c69725

github-actions Bot added [Package] Editor /packages/editor First-time Contributor Pull request opened by a first-time contributor to Gutenberg repository labels May 23, 2026

dhanson-wp marked this pull request as ready for review May 23, 2026 17:17

t-hamano added the [Type] Enhancement A suggestion for improvement. label May 24, 2026

ramonjd reviewed May 25, 2026

View reviewed changes

simison reviewed May 27, 2026

View reviewed changes

simison requested review from jasmussen and mtias May 27, 2026 08:40

	/**
	* The choices for the device type.
	* Duplicated in block-editor block-visibility constants and edit-site
	* use-viewport-sync. Update all three when adding new viewport types.
	*
	* @type {Array}
	*/
	const choices = [
	{
	value: 'Desktop',
	label: __( 'Desktop' ),
	icon: desktop,
	},
	{
	value: 'Tablet',
	label: __( 'Tablet' ),
	icon: tablet,
	},
	{
	value: 'Mobile',
	label: __( 'Mobile' ),
	icon: mobile,
	},
	];

Uh oh!

Conversation

dhanson-wp commented May 23, 2026

What?

Why?

How?

Screenshots

Desktop preview

Tablet preview

Mobile preview

Testing Instructions

Accessibility

Notes / follow-up

Validation

Uh oh!

github-actions Bot commented May 23, 2026

Uh oh!

github-actions Bot commented May 23, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

ramonjd left a comment

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

simison May 27, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

simison May 27, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

simison commented May 27, 2026

Uh oh!

Reviewers

Assignees

Labels

Projects

Milestone

Development

Uh oh!

github-actions Bot commented May 23, 2026 •

edited

Loading

simison May 27, 2026 •

edited

Loading

simison May 27, 2026 •

edited

Loading
