Adds a harness-agnostic config bridge that reads agent configuration from all available sources and exposes it to the frontend with full provenance — where each value came from and how it can be written back.

Agent config was fragmented across four uncoordinated mechanisms with no single surface to see what a running agent would actually use. The silent failure mode was concrete: Wes's goose personas failed because active_provider in ~/.config/goose/config.yaml was invisible to Sprout and overrode our injected model. The bridge surfaces that ambient config, establishes a clear precedence order, and routes writes to the cheapest live mechanism.

  • New config_bridge module with per-runtime config file readers: YAML for goose (~/.config/goose/config.yaml), JSON for Claude Code (~/.claude/settings.json + ~/.claude.json), TOML for Codex (~/.codex/config.toml). 25 unit tests covering all formats, malformed files, and missing files.
  • Four-tier precedence: Sprout-explicit > ACP native (reserved for goose post goose#9197) > ACP configOptions from session/new > env vars > config file on disk. Pre-spawn surfaces tier 2 only; post-spawn adds ACP tiers.
  • session_config_captured observer event emitted after session/new; put_agent_session_config Tauri command populates SessionConfigCache in AppState. parse_models handles both the object shape ({currentModelId, availableModels}) and legacy array shape from session/new.
  • get_agent_config_surface and write_agent_config_field Tauri commands. Write mechanism is chosen per runtime and field: session/set_config_option (live, no restart) before env-var respawn. Single lock scope on the write path closes a TOCTOU race.
  • AgentConfigPanel component with origin badges (Sprout/ACP/ConfigFile/Env), collapsible advanced section, and sources footer showing all four tier statuses. Override/strikethrough rendering shows superseded config values inline — the overridden value appears crossed out next to the effective value, with both origin badges visible for at-a-glance provenance. Read-only fields display an info icon with tooltip rather than a lock icon.
  • ModelPicker shows provenance label when config surface data is available post-spawn (best-effort, non-blocking).
  • Playwright E2E screenshot spec covering 7 scenarios (goose, claude-code, codex, pre-spawn, overrides, advanced section, sources footer) for visual review.
  • Fixes codex.provider_locked to false — Codex supports [model_providers.<id>] custom provider tables. Fixes serde enum tagging on ConfigWriteMechanism, ConfigFieldType, and WriteConfigTarget to use #[serde(tag = "type")] matching the TypeScript discriminated union shapes (default external tagging made all write operations and TS type guards silently broken).

Stack: #794 → this PR

@wpfleger96 wpfleger96 force-pushed the wpfleger/phase3b-normalized-config branch 2 times, most recently from 66de98f to 60f95a2 Compare June 6, 2026 01:02
@wpfleger96 wpfleger96 changed the title feat(desktop): phase 4 — harness-agnostic config bridge feat(desktop): harness-agnostic config bridge Jun 6, 2026
@wpfleger96 wpfleger96 force-pushed the wpfleger/phase3b-normalized-config branch 6 times, most recently from de81ed1 to 0c44d4e Compare June 9, 2026 17:57
@wpfleger96 wpfleger96 force-pushed the wpfleger/phase4-config-bridge branch from 44cc07f to 678b871 Compare June 9, 2026 18:02
@wpfleger96 wpfleger96 force-pushed the wpfleger/phase3b-normalized-config branch from 0c44d4e to ba28ea0 Compare June 9, 2026 20:31
Base automatically changed from wpfleger/phase3b-normalized-config to main June 9, 2026 20:42
@wpfleger96 wpfleger96 force-pushed the wpfleger/phase4-config-bridge branch 2 times, most recently from c392c34 to 9939a10 Compare June 11, 2026 19:24
wpfleger96 pushed a commit that referenced this pull request Jun 11, 2026
wpfleger96 pushed a commit that referenced this pull request Jun 11, 2026
@wpfleger96 wpfleger96 force-pushed the wpfleger/phase4-config-bridge branch from 3228e7a to 139ada2 Compare June 11, 2026 20:16
wpfleger96 pushed a commit that referenced this pull request Jun 11, 2026
wpfleger96 pushed a commit that referenced this pull request Jun 11, 2026
@wpfleger96

Copy link
Copy Markdown
Collaborator Author

Config Bridge — AgentConfigPanel Screenshots (v4)

Updated screenshots with inline override rendering: overridden values appear with strikethrough next to the effective value, and overridden origin badges appear next to the effective badge.

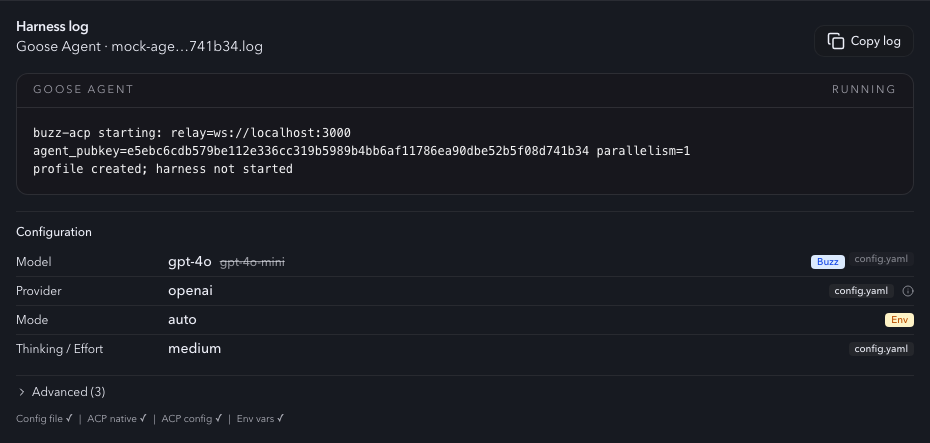

1. Goose — Full Config Panel

Mixed-origin badges (Sprout/ACP/ConfigFile/Env), model/provider/mode fields with provenance tracking. Info icon on read-only fields with hover tooltip. Override value inline with strikethrough.

01-goose-full-config

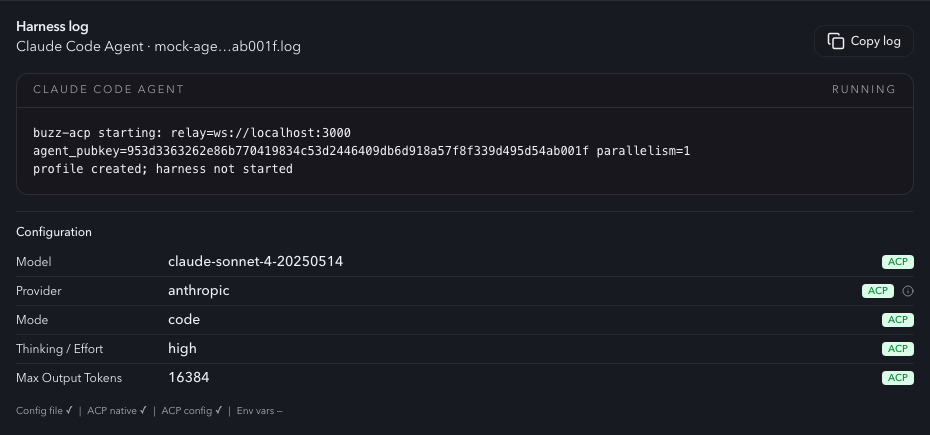

2. Claude Code — ACP Config Options

ACP-sourced values with green badges, demonstrating the "one surface, multiple runtimes" approach.

02-claude-acp-config

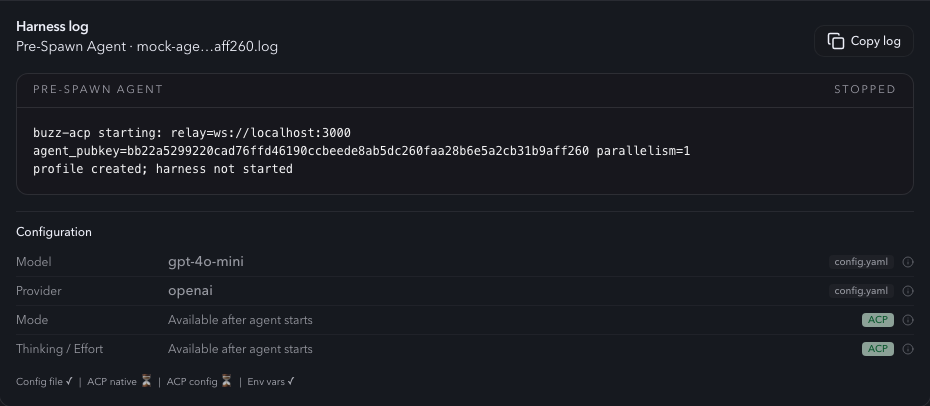

3. Pre-Spawn State

Dimmed ACP fields showing "Available after agent starts" — config surface before runtime is active.

03-pre-spawn-state

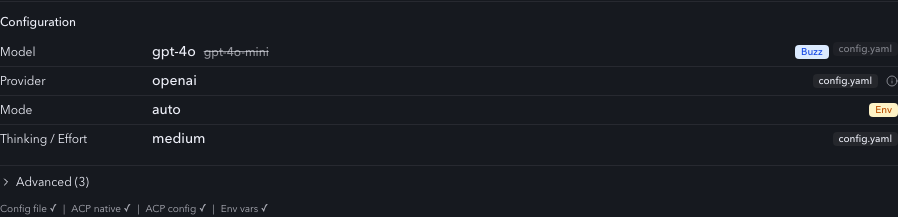

4. Override Visibility

Effective value shown with overridden default crossed out inline, plus both origin badges side by side.

04-override-visibility

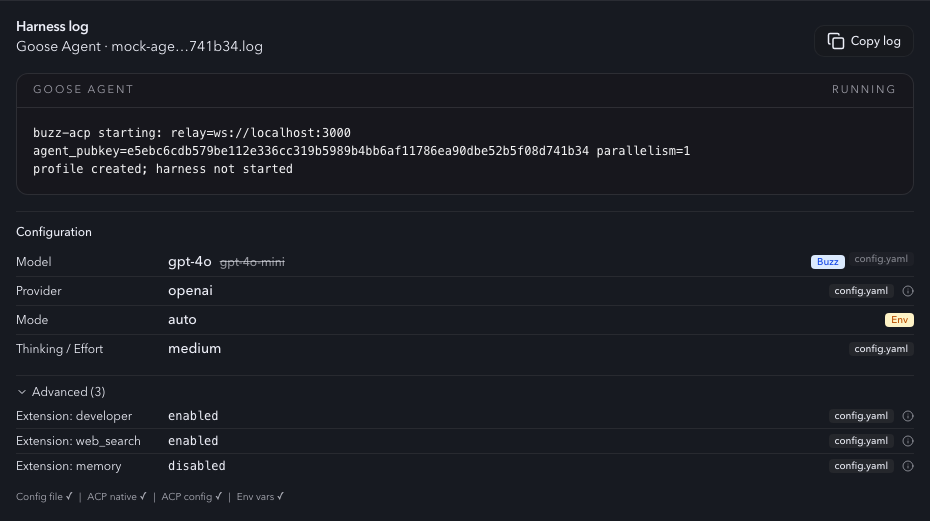

5. Advanced Section Expanded

Collapsible advanced section with runtime-specific extra fields (extensions, output style, etc.).

05-advanced-expanded

6. Sources Footer

Four-tier status indicators showing which config sources are active.

06-sources-footer

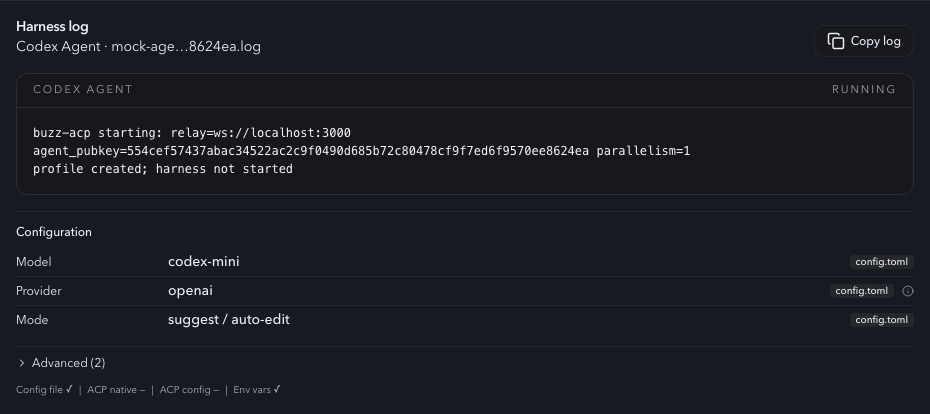

7. Codex — Dual-Mode Display

Codex's unique dual-axis mode (approval_policy × sandbox_mode).

07-codex-dual-mode

wpfleger96 pushed a commit that referenced this pull request Jun 11, 2026
@wpfleger96 wpfleger96 force-pushed the wpfleger/phase4-config-bridge branch 3 times, most recently from 85ab849 to 03d4165 Compare June 12, 2026 19:27
Four-tier config bridge that reads agent configuration from config
files (goose YAML, claude JSON, codex TOML), ACP session data, env
vars, and Sprout-explicit overrides — surfacing a unified normalized
config surface to the desktop UI regardless of runtime.

Key changes:
- Config bridge module with per-runtime file readers
- ACP session config caching for post-spawn config visibility
- AgentConfigPanel component with origin badges and tier provenance
- Serde internally-tagged enums matching TypeScript discriminated unions
- TOCTOU-safe write path with single lock scope
- E2E mock handler for get_agent_config_surface with per-runtime
  fixtures and a Playwright screenshot spec covering 7 scenarios
- Info icon + tooltip on read-only fields; override/strikethrough
  rendering for superseded config values
