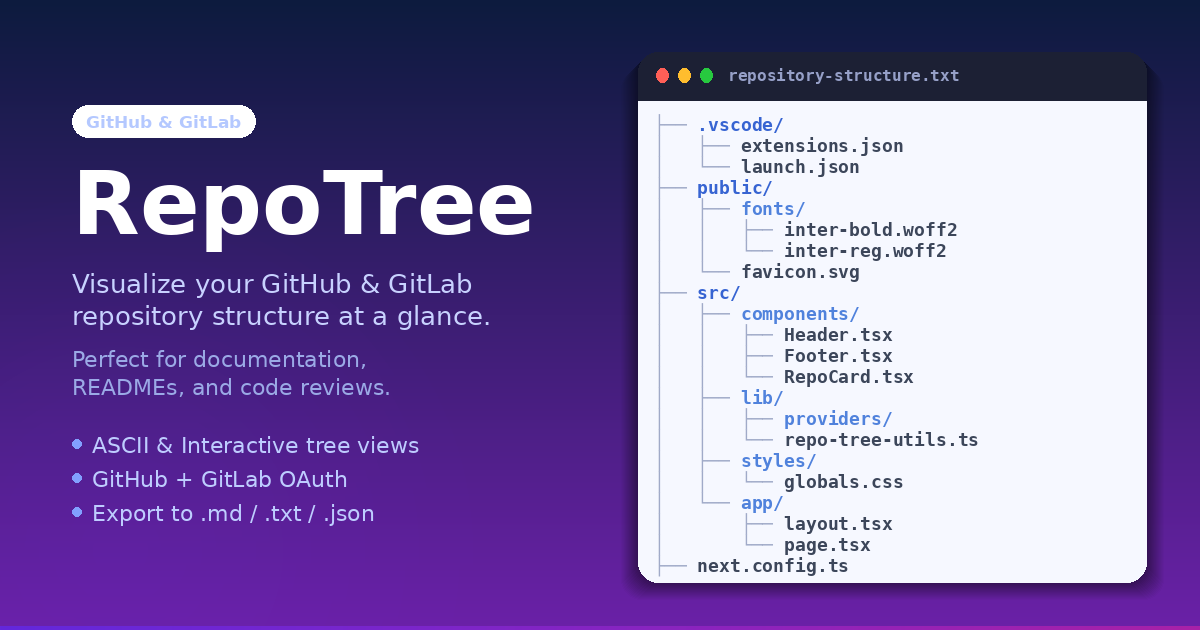

RepoTree 🌳

A web tool that visualizes GitHub and GitLab repositories with clean ASCII trees. Supports both public and private repositories via OAuth authentication.

Features

• ASCII tree visualization — clean, copy-ready directory structure output
• Interactive tree view — collapsible folder explorer with VS Code-style file icons
• Repository analysis — file type distribution and language breakdown charts
• Multiple export formats — download as .md, .txt, .json, or .html
• Real-time search — filter files and folders as you type
• Customizable output — icons, line numbers, descriptions, trailing slashes
• Dark & light themes — automatic system preference detection
• OAuth authentication — secure GitHub and GitLab sign-in for private repo access

Quick start

Local development

# Clone the repository
git clone https://github.com/coder-ralph/RepoTree.git
cd RepoTree

# Install dependencies
npm install

# Copy environment template
cp .env.example .env.local

# Fill in your environment variables (see setup below)
# Then start the dev server
npm run dev

Open http://localhost:3000.

Environment variables

NEXTAUTH_URL=http://localhost:3000
NEXTAUTH_SECRET=          # openssl rand -base64 32

GITHUB_CLIENT_ID=
GITHUB_CLIENT_SECRET=

GITLAB_CLIENT_ID=
GITLAB_CLIENT_SECRET=

GitHub OAuth app

1. Go to GitHub Settings → Developer settings → OAuth Apps → New OAuth App
2. Callback URL: http://localhost:3000/api/auth/callback/github
3. Copy Client ID and Secret to your .env.local

GitLab OAuth app

1. Go to GitLab → Edit Profile → Applications → Add new application
2. Scopes: read_user, read_repository
3. Redirect URI: http://localhost:3000/api/auth/callback/gitlab
4. Copy Application ID and Secret to your .env.local

Tech stack

Technology	Purpose
Next.js 15	React framework, App Router, server-side API routes
NextAuth v4	OAuth authentication (GitHub, GitLab)
TypeScript	Type-safe development
Tailwind CSS	Utility-first styling
Shadcn UI	Accessible component primitives
Octokit	GitHub REST API client
Recharts	Repository analysis charts
Framer Motion	Landing page animations

Authentication

RepoTree uses OAuth-only authentication. No personal access tokens are accepted.

• Sign in with GitHub or GitLab to access private repositories
• Session tokens are stored in encrypted httpOnly cookies — never in localStorage
• Sessions expire after 24 hours
• Public repositories work without any sign-in

See MIGRATION.md for full details on the auth architecture.

Contributing

Issues and pull requests are welcome at github.com/coder-ralph/RepoTree.

License

MIT — see LICENSE.

---

Made with ❤️ and ☕ by Ralph Rosael
