ReviewBook - Product Overview

Content: Architecture Diagram, Technical overview, High-level Features
Domain: eCommerce => Reviews and ratings

High-level Features

As a guest-user, I must be able see the landing page which displays basic information about the platform; and able to See all the Available Products on the platform

As a guest user, I must be able to register myself on the platform as a regular user or as a product owner

As a registered user, I must be able to login using correct credentials.

As a logged-in user, I must be able to view and edit my profile.

As a Product Owner, I must be able to Add new Product details, Update my added products, Delete my existing Product & see my added product on the platform.

As a logged-in user, I must be able to see (others) review, give own review and rating & like other's review comments on the products

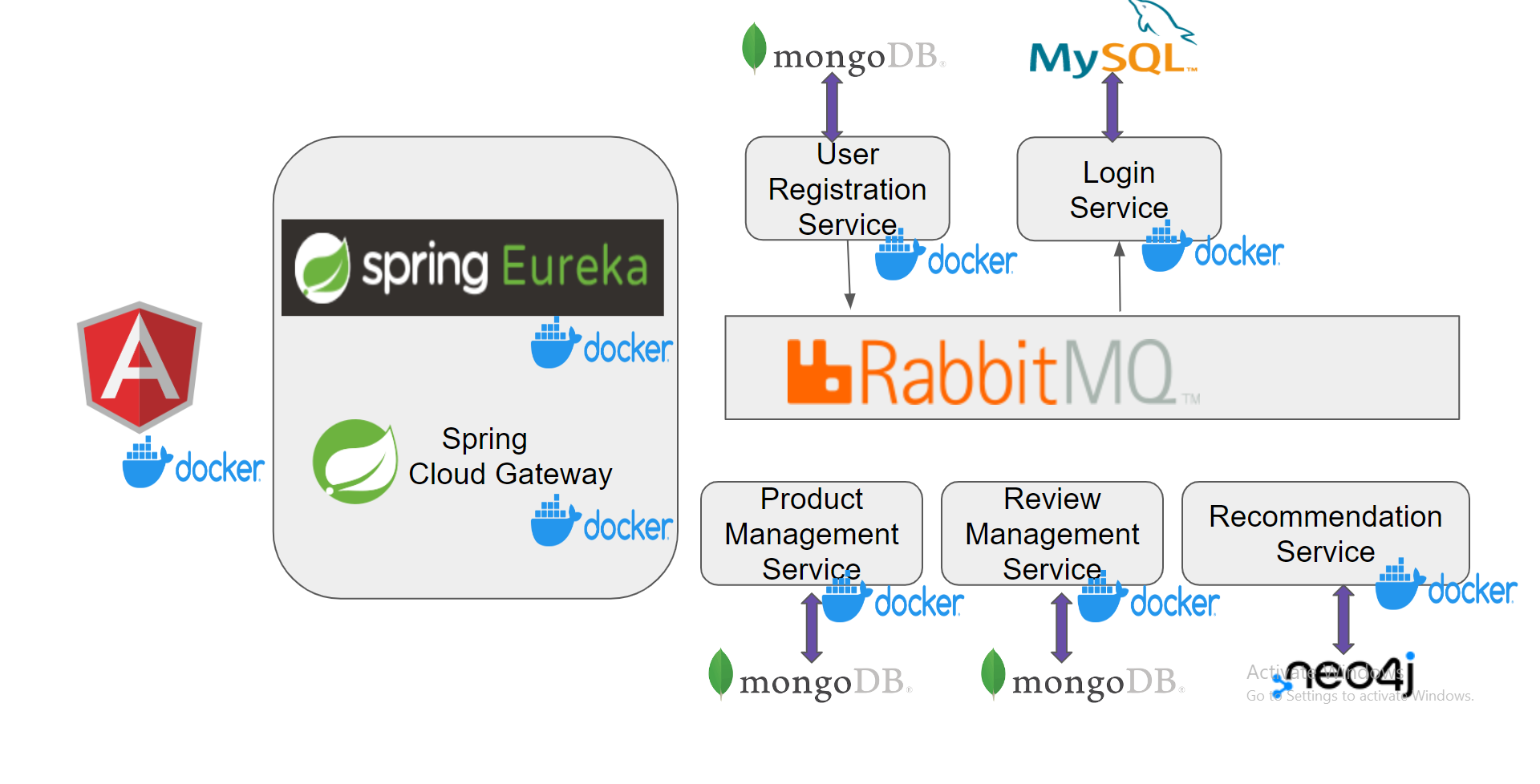

Architecture Diagram


Architecture of ReviewBook


_**Product's Documentation:**_ https://github.com/deepak-mandal/ReviewBook-Documentation

Software Requirement:-

• JDK v11 (run .msi file) - https://www.oracle.com/in/java/technologies/downloads/

• Eclipse IDE - https://eclipseide.org/

• MySQL, PATH setup - https://dev.mysql.com/downloads/installer/

• MongoDB, PATH setup - https://www.mongodb.com/try/download/community

• Node (run .msi file) - https://nodejs.org/en/download

• TypeScript v4.5 (npm install -g typescript) - https://www.typescriptlang.org/download/

• Angular v13 (npm install -g @angular/cli) - https://angular.dev/installation

• Visual Studio Code IDE - https://code.visualstudio.com/

• MySQL Script

• MongoDB Script

Ports

• Eureka Server: 8076
• Config Server: 8888
• API Gateway: 8086
• Login Service: 8080
• Product Management: 8081
• User Registration Service: 8082
• Product Recommendation: 8083
• Review Management: 8084
