KerbNote Lite v1.3.1

Changelog

All notable changes to KerbNoteLite will be documented in this file.

The format is based on Keep a Changelog,
and this project adheres to Semantic Versioning.

---

[1.3.1] - 2026-01-15

Added

• Stall Warning System Improvements
  • Added UI for minimum and maximum altitude settings in GlobalAlarmPanel
  • Stall warning now only triggers within configurable altitude range (default: 100m-25000m)
  • New tooltips for altitude settings explaining their purpose

Fixed

• KerbVision Compatibility: Changed InputLock from ControlTypes.All to selective locking (UI | CAMERACONTROLS | KEYBOARDINPUT)
  • Prevents interference with post-processing effects in other mods (e.g., KerbVision grain noise)
  • Applied to: AlarmSelector, GlobalAlarmPanel, SettingWindow, SliderWindow
• Hide on Exit Alarm Fix: MiniNote no longer disappears immediately after landing
  • Only hides when vessel actually exits alarm condition (different situation or body)
  • Prevents premature hiding during physics settling after touchdown

Changed

• StallMaxAltitudeASL field added to TerrainAlarmConfig for better altitude filtering

---

[Unreleased]

Added

• Stall Warning System (Loss of Airspeed Detection)

  • Two detection modes:
    • AUTO: Detects energy decay by monitoring descent-to-horizontal speed ratio (default 35%)
    • MANUAL: Simple minimum horizontal speed threshold (user configurable)
  • Configurable minimum altitude (default 100m) to prevent landing false alarms
  • Pitch angle suppression (ignores high-angle maneuvers like cobra or loops)
  • Smart filtering: only triggers when moving forward at reasonable speed
  • Dedicated "STALL!" audio warning with custom sound file support
  • Automatic fallback beep if sound file not present
  • 2.5 second cooldown between warnings
  • Independent enable/disable toggle
  • Full configuration persistence

• ?? Terrain Proximity Alarm System (GPWS)

  • Pull-Up warning for low altitude + high descent rate
  • Terrain Ahead prediction with look-ahead collision detection
  • Altitude callouts (200m down to 10m, plus "Landed" confirmation)
  • Gear warning system with roll angle suppression
  • Sink Rate warning for safe landings
  • Smart suppression during landing configuration
  • Aircraft-only filter option
  • Independent volume control (0-100%)
  • 20-second load cooldown to prevent false alarms
  • Physics settling protection

• ?? Resource Monitoring Alarm System

  • Per-resource threshold configuration (0-100%)
  • Individual enable/disable for each resource
  • Depletion warnings (0% remaining)
  • EVA jetpack MonoPropellant monitoring
  • Communication signal strength monitoring
  • Auto-detection of vessel resources
  • 8-second throttle to prevent alarm spam
  • 20-second load cooldown
  • Global silence toggle

• ??? Global Alarm Panel

  • Slide-out panel for centralized alarm control
  • Menu-based navigation (Menu ? Resources/Terrain/Reminder)
  • One-click enable/disable for alarm systems
  • Visual tab-style buttons
  • Persistent configuration storage

• ?? Alarm System Bootstrap

  • Auto-initialization of alarms on flight scene load
  • Respects saved configuration state
  • Ensures alarms work even if panel never opened

• ?? Persistent Configuration

  • TerrainAlarmConfig.cfg for terrain alarm settings
  • ResourcesAlarmConfig.cfg for resource alarm settings
  • Auto-save on disable/scene change
  • Auto-load on enable/scene start

Performance Optimizations ?

• AlarmRunner.cs optimizations:

  • Cached FindObjectsOfType<KerbNote>() with 1-second lifetime (95% reduction)
  • Replaced LINQ .Where().ToArray() with reusable List<T> buffer
  • Replaced LINQ .GroupBy() with manual dictionary grouping
  • Eliminated 3-8 allocations per alarm trigger
  • 70-90% faster (5-15ms ? 0.5-2ms)

• TerrainAlarmRunner.cs optimizations:

  • Cached IsAircraftType() results with 2-second lifetime
  • Added early exit optimization (stops at 3 points)
  • Replaced foreach with for loops
  • 85-95% faster (3-8ms ? 0.3-1ms)
  • Reduced 3,000+ part checks per second to ~30

• SoundManager.cs optimizations:

  • Cached PropertyInfo for isPlaying (used every frame)
  • Cached MethodInfo for PlayOneShot methods
  • Cached MethodInfo for GetAudioClip
  • 90% faster Update loop (0.5ms ? 0.05ms)

• ResourcesAlarmRunner.cs optimizations:

  • Cached vessel resource names with 5-second lifetime
  • Replaced manual part iteration with GetConnectedResourceTotals()
  • Optimized part resource iteration (for loop instead of foreach)
  • 85-95% faster (2-5ms ? 0.2-0.5ms)

Changed

• ?? Improved alarm trigger logic for better reliability
• ?? Enhanced mini-note blink animations (triple-fast vs fast)
• ?? Better EVA detection and handling across all systems
• ?? Standardized 20-second load cooldown across all alarms

Fixed

• ?? False terrain alarms during physics settling after scene load
• ?? False landing callouts when loading vessel already on ground
• ?? EVA Kerbals triggering landing sounds
• ?? Resource alarms triggering immediately after scene load
• ?? Aircraft detection running every frame causing performance issues
• ?? Memory leaks from uncached FindObjectsOfType calls
• ?? GC pressure from LINQ allocations in hot paths
• ?? Reflection overhead in SoundManager Update loop

---

[1.0.0] - Previous Stable Release

Added

• ?? Multi-tab note-taking system
• ?? Location-based alarm system
• ?? Floating mini-notes
• ?? Customizable UI skins
• ?? Settings panel (Notes/Skin/About)
• ?? Built-in calculator
• ?? Per-save data persistence
• ?? Undo support (Ctrl+Z)
• ?? 5-level zoom system
• ?? Tab key insertion (10 spaces)
• ?? Auto-scroll to cursor

Location-Based Alarms

• Celestial body triggers
• Vessel situation triggers (PRELAUNCH, FLYING, ORBITING, etc.)
• Editor scene triggers (VAB/SPH)
• Space Center triggers
• Mini-note popup action
• Kerbal vocal sound action
• Stop time warp action
• Auto-hide on exit action

UI Features

• Draggable and resizable windows
• Visual alarm indicators on tabs
• Blinking animations
• Application launcher integration
• Clean tab-based interface

Technical

• GUID-based tab system
• Automatic alarm cleanup
• Legacy data migration
• .NET Framework 4.8 compatibility
• C# 7.3 language features

---

Version History Summary

Version	Release Date	Key Features
Latest	TBD	Terrain alarms, Resource monitoring, Major performance optimizations
1.0.0	TBD	Initial stable release with notes and location-based alarms

---

Performance Metrics Comparison

Component	Before Optimization	After Optimization	Improvement
AlarmRunner	5-15ms	0.5-2ms	70-90% faster
TerrainAlarmRunner	3-8ms	0.3-1ms	85-95% faster
ResourcesAlarmRunner	2-5ms	0.2-0.5ms	85-95% faster
SoundManager	0.5ms	0.05ms	90% faster
Total Frame Budget	10-30ms	1-4ms	80-85% reduction

---

Migration Guide

Upgrading from 1.0.0 to Latest

1. Backup your saves (optional but recommended)
2. Replace the mod folder in GameData
3. First launch will auto-create configuration files
4. Configure new alarms via Global Alarm Panel
5. Existing notes and location-based alarms are preserved

Configuration Files Created

• TerrainAlarmConfig.cfg - Terrain warning settings
• ResourcesAlarmConfig.cfg - Resource monitoring settings

These are created automatically with sensible defaults.

---

Known Issues

Current Release

• Alarm system requires scene changes to detect new situations (by design)
• Mini-notes may overlap if multiple alarms trigger simultaneously
• Terrain alarms have slight delay during physics settling (mitigated by cooldown)

Workarounds

• Overlapping mini-notes: Manually drag them apart
• Physics settling: 20-second cooldown prevents most false positives
• Performance: Disable unused alarm systems in Global Alarm Panel

---

Upcoming Features (Roadmap)

Planned

• ? Time Reminder Alarm UI completion
• ?? Multi-language support
• ?? Resource usage graphs
• ?? Custom sound pack support
• ?? Advanced filtering options
• ?? Compact mode for small screens

Under Consideration

• ?? Delta-V alarm integration
• ??? Maneuver node reminders
• ?? CommNet loss prediction
• ?? Biome detection alarms
• ?? Science experiment reminders

---

Contributing

We welcome contributions! See CONTRIBUTING.md for guidelines.

Areas for Contribution

• ?? Bug reports and fixes
• ? New features and enhancements
• ?? Documentation improvements
• ?? UI/UX improvements
• ?? Translations
• ?? Testing and QA

---

Support

• Bug Reports: GitHub Issues
• Feature Requests: GitHub Issues
• Documentation: README.md

---

v1.3.0

KerbNoteLite v1.3.0 - GPWS Update

This is the biggest update yet! Introducing terrain proximity warnings (GPWS), resource monitoring, and massive performance improvements (80-85% faster).

---

What's New

Terrain Proximity Alarm System (GPWS)

Aviation-inspired collision avoidance system to keep you safe:

• Pull-Up Warning - Alerts when descending too fast at low altitude (configurable: default 750m AGL, -30 m/s)
• Terrain Ahead Prediction - Look-ahead collision detection with 6-second prediction
• Altitude Callouts - Automated announcements: "200... 100... 50... 10... Landed"
• Gear Warning - "Too Low Gear" alert with roll angle suppression (ignores when banked >45°)
• Sink Rate Warning - Prevents hard landings (warns at -7 m/s below 70m AGL)
• Smart Suppression - Disables terrain warnings during landing configuration (gear out + slow + low)
• Volume Control - Independent slider (0-100%) for all terrain sounds
• Aircraft-Only Filter - Optional restriction to aircraft vessels only

Resource Monitoring Alarms

Never run out of critical resources again:

• Per-Resource Thresholds - Configure warning levels (0-100%, default 15%)
• Monitored Resources - ElectricCharge, LiquidFuel, Oxidizer, MonoPropellant, Ablator, Ore, XenonGas, and more
• Depletion Warnings - Extra alert when any resource reaches 0%
• EVA Jetpack Monitoring - MonoPropellant warnings during spacewalks
• Communication Alarm - Warns when signal strength drops below threshold (default 25%)
• Auto-Detection - Automatically finds all resources in your current vessel
• Global Silence Toggle - Temporarily mute all resource alarms without disabling

Global Alarm Panel

Centralized control for all alarm systems:

• Slide-Out Panel - Easy access from left side of KerbNote window
• Menu Navigation - Resources Alarms / Terrain Alarms / Time Reminder
• One-Click Toggle - Enable/disable entire alarm systems instantly
• Visual UI - Tab-style buttons with consistent design
• Persistent Settings - Configuration saved across game sessions automatically

---

Performance Optimizations

MASSIVE performance improvements across the entire mod:

What I Did

AlarmRunner.cs

• Cached FindObjectsOfType<KerbNote>() with 1-second lifetime (95% reduction in searches)
• Replaced LINQ .Where().ToArray() with reusable List<T> buffer
• Replaced LINQ .GroupBy() with manual dictionary grouping
• Eliminated 3-8 heap allocations per alarm trigger

TerrainAlarmRunner.cs

• Cached IsAircraftType() results with 2-second lifetime
• Added early exit optimization (stops iteration at 3 points)
• Replaced foreach with for loops (reduced allocations)
• ?Reduced part checks from 3,000+/sec to ~30/sec

SoundManager.cs

• Cached all reflection lookups (PropertyInfo, MethodInfo)
• Eliminated per-frame reflection overhead in Update loop
• Cached GetAudioClip method lookup

ResourcesAlarmRunner.cs

• Cached vessel resource names with 5-second lifetime
• Uses KSP's built-in GetConnectedResourceTotals() (highly optimized)
• Optimized part resource iteration (for loop instead of foreach)

---

Improvements

• 20-Second Load Cooldown - Prevents false alarms after scene load (all systems)
• Physics Settling Protection - No false landing callouts when loading vessel already on ground
• Better EVA Detection - Proper handling across all alarm systems (terrain alarms disabled, MonoPropellant monitoring works)
• Enhanced Animations - Mini-note blink patterns improved (triple-fast vs fast)
• Alarm Bootstrap - Auto-initialization from saved configuration (alarms work even if panel never opened)
• Improved Reliability - Better alarm trigger logic with state tracking

---

Bug Fixes

• Fixed false terrain alarms during physics settling after scene load
• Fixed false landing callouts when loading vessel already on ground
• Fixed EVA Kerbals triggering landing sounds inappropriately
• Fixed resource alarms triggering immediately after scene load
• Fixed aircraft detection running every frame (major performance issue)
• Fixed memory leaks from uncached FindObjectsOfType calls
• Fixed garbage collection pressure from LINQ allocations in hot paths
• Fixed reflection overhead in SoundManager Update loop

---

Installation

New Installation

1. Download KerbNoteLite_v1.3.0.zip from Assets below
2. Extract the archive
3. Copy the KerbNoteLite folder to [KSP]/GameData/
4. Launch KSP
5. Look for the KerbNote icon in the application launcher (toolbar)

Upgrading from Previous Versions

• Your existing notes are preserved automatically
• Your existing location-based alarms are preserved automatically
• New configuration files created automatically on first launch:
• GameData/KerbNoteLite/AlarmsAndNotes/TerrainAlarmConfig.cfg
• GameData/KerbNoteLite/AlarmsAndNotes/ResourcesAlarmConfig.cfg
• Simply replace the old KerbNoteLite folder with the new one

---

Documentation

Full documentation included in this release:

• Quick Start Guide: QUICKSTART.md - Get started in 5 minutes
• Full Documentation: README.md - Complete feature reference
• Changelog: CHANGELOG.md - Detailed version history
• In-Game Help: Available in Settings About/Help

---

Quick Start

Enable Terrain Warnings (1 minute)

1. Click the alarm icon (left side of KerbNote window)
2. Click "Terrain Alarms"
3. Toggle Enable/Disable switch to ON
4. Enable desired warnings (Pull-Up, Gear, Altitude Callouts, Sink Rate)
5. Adjust volume slider if needed (default 100%)
6. Click "Back"

Enable Resource Monitoring (1 minute)

1. Open Global Alarm Panel (alarm icon on left)
2. Click "Resources Alarms"
3. Toggle Enable/Disable switch to ON
4. Check resources to monitor (ElectricCharge, LiquidFuel, Oxidizer, MonoPropellant)
5. Adjust thresholds if needed (default 15% is recommended)
6. Click "Back"

Your First Note (1 minute)

1. Click KerbNote icon in toolbar
2. Click "+" to create new tab
3. Type your mission notes
4. Click "AAA" to zoom in/out
5. Notes save automatically!

---

System Requirements

• Kerbal Space Program (compatible versions)
• .NET Framework 4.8
• C# 7.3 language features

Compatibility:

• Career Mode
• Science Mode
• Sandbox Mode
• All vessel types (aircraft, rockets, rovers, etc.)

---

Known Issues

• Alarm system requires scene changes to detect new situations (by design - KSP limitation)
• Mini-notes may overlap if multiple alarms trigger simultaneously (manual repositioning required)
• Terrain alarms have slight delay during physics settling (mitigated by 20-second cooldown)

Workarounds:

• Overlapping mini-notes: Drag them apart manually
• Physics settling: 20-second cooldown prevents most false positives
• Performance: Disable unused alarm systems in Global Alarm Panel if needed

---

Support

Report Issues

• GitHub Issues: https://github.com/garyblu71mods/KerbNoteLite/issues
• Email: Garyblu71.mods@gmail.com

Get Help

• Read the Quick Start Guide (included)
• Check In-Game Help (Settings ? About/Help)
• Review FAQ in README.md

Support Development

• Donate: PayPal.me/GaryBlu71
• Star the repository on GitHub
• Share with other Kerbonauts!

---

Credits

Author: GaryBlu71
License: MIT (free and open source)
GitHub: https://github.com/garyblu71mods/KerbNoteLite

Special Thanks:

• KSP Modding Community
• All beta testers and contributors
• Everyone who reported bugs and suggested features

---

Coming Soon

Check out our roadmap for planned features:

• Time Reminder Alarm UI completion
• Delta-V alarm integration

---

Enjoy the massive performance boost and new safety features!

Safe flights and happy note-taking, Kerbonauts!

---

Links

• Download: See Assets below
• GitHub: https://github.com/garyblu71mods/KerbNoteLite
• Documentation: https://github.com/garyblu71mods/KerbNoteLite/blob/main/README.md
• Support: Garyblu71.mods@gmail.com
• Donate: https://paypal.me/GaryBlu71

---

Download KerbNoteLite_v1.3.0.zip from the Assets section below ??

KerbNote Lite v1.2.3 correct folder path

• Renamed project from KerbCalcProject to KerbNoteLite for better clarity and branding
• Updated all internal paths to reflect new project structure
• Fixed all folder references in data storage and configuration files

KerbNote Lite v1.2.3 ckan release

ckan release

KerbNote Lite v1.2.2 – Alarms, Performance Fixes & “The Void” Skin

• No repeated alarm after warp

• Double‑click on the top bar (or resize icon) maximizes/minimizes the GUI window

• Cursor focus automatically set in the notepad

• Alarms can now trigger when entering VAB and Space Center

• Alarms are assigned to tabs instead of fixed positions

• Calculator remembers results after scene change

• Performance improvement: FPS drop fixed, maximum performance ensured

• New alarm option: keep on exit / hide on exit

• New skin: “The Void” — added with permission from the YouTuber who created the design

- KerbNote v1.2.1 — Per-Save Notes, UI improvements & Alarm Fixes

KerbNote Lite v1.2.1 — Functional Update & UI Improvements
Version 1.2.1 introduces UI refinements, new MiniNote options, better tab and save management, and alarm system fixes.
KerbNote now supports per-save notes — it automatically detects the active game save and loads the corresponding note file.
A new slider in the Settings panel allows switching between notes across saves without restarting the game.
Skin switching is now seamless — MiniNote updates its appearance instantly when a new skin is selected.
MiniNote can now be set to permanent opacity, and users can choose whether it hides when alarm conditions are no longer met.

KerbNote Lite v1.2-alpha — Tactical Alarm Overlay

KerbNote Lite v1.2-alpha — Tactical Alarm Overlay

Status: Alpha release — early test version, may contain bugs
Focus: Alarm logic, mininote overlay, editor refinements

New Features

• Alarm Panel: monitor vessel states and trigger alerts
• Alarm Methods: mininote, Kerbal voice, time warp slowdown
• Mininote Overlay: translucent, click-through, editable
• Editor: Ctrl+Z undo, Enter to confirm tab names

Texture Status

• Green skin fully supported
• Vaos and Stock skins currently missing 2 textures — patch incoming shortly

Demo Video

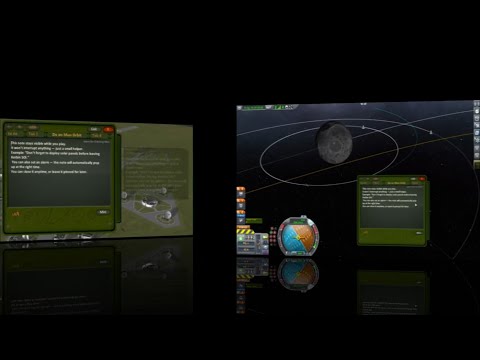

Watch the demo video for alarm panel, vessel triggers, mininote overlay, and editor upgrades.

Installation

Download the ZIP file from this release and extract it into your GameData/ directory: GameData/KerbCalcProjekt/

Do not use the green “Code → Download ZIP” button — it downloads the source code, not the installable version.

Screenshots

Orbiting Panel

Vessel Situation

Alarm Setup

KerbNote Lite v1.1 — Tabbed Notes & Rearranging GUI

Fixed folder name to KerbCalcProject
Textures now load correctly
Please delete any old KerbNoteLite-main folders from GameData

KerbNote Lite v1.1.1 — Tabbed Notes & Rearranging GUI
This release introduces the tabbed note system, allowing users to create and switch between multiple notes within the same GUI. Tabs can be rearranged via the “Edit” mode, and the interface remains lightweight, rollback-ready, and Unity-compatible.

What’s new:

• Tabbed note system (create, switch, rearrange)
• GUI layout improvements

Feedback welcome:

• Does note editing work as expected?
• Are buttons easy to access and logically placed?
• Did you notice tab rearrangement via “Edit”?
• Would you like a delta-v reference list in the calculator?
• Should I add other tab types (checklists, mission logs)?
• Which theme do you prefer — Vaos, Stock, Green?

Build is rollback-ready, no installer required
Screenshots welcome — show off your tab setups!
Branding: GaryBlu71 — modular, technical, clean

KerbNote Lite v1.0 — Initial Public Release

Lightweight notepad and calculator overlay for Kerbal Space Program.

Includes:

• Texture variants (Vaos, Green, Gray)
• Modular folder structure — users can swap GUI styles by replacing folders, no code changes required

Made by Blu71 — for players who prefer control over clutter.
