This package populates a Shlaer-Mellor Executable UML metamodel repository with your modeled system. Here, we'll use the Elevator Case Study system as an example.

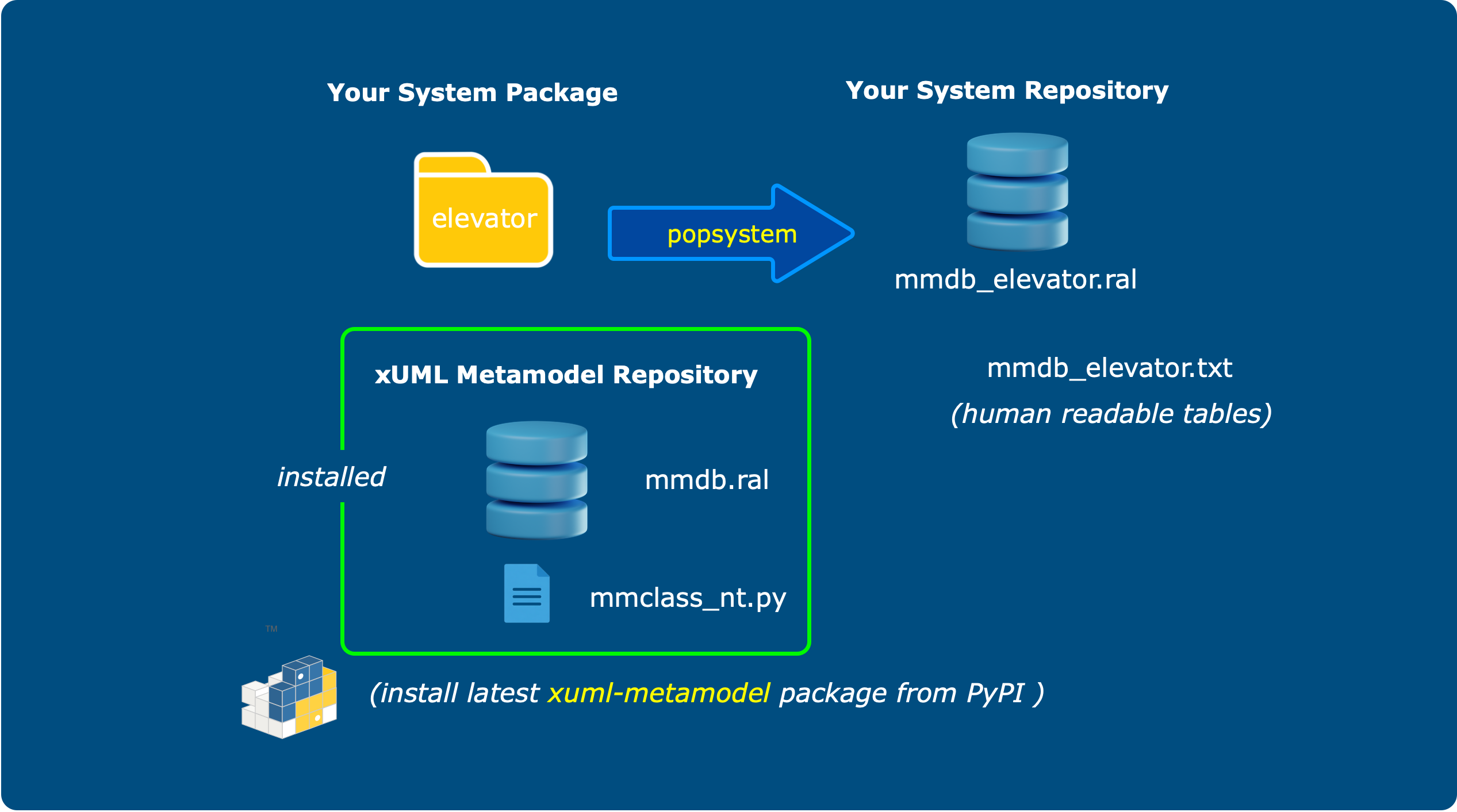

The two inputs are: 1) an empty metmaodel repository and 2) your modeled (or partially modeled) system. The populator outputs a metamodel database populated with your system. For our example, we'll populate the elevator system into the repository.
The empty metamodel repository (mmdb.ral) is supplied automatically by the
xuml-metamodel package, which popsystem depends on — so you do
not provide it yourself. That package is generated by the
makexumlrepo command and versioned independently; to populate
against a different metamodel version, install a different version of xuml-metamodel.
The modeled system is a structured hierarchy of folders containing text files representing your models. You can think of this as a system package. You just feed the name of the top level system folder as input to the command line.
% popsystem -s elevator
The top level of the elevator system package named elevator is in the local directory for this example and we've specified the path with the -s option. The empty metamodel repository it populates comes from the installed xuml-metamodel package, so you do not supply it on the command line.
The above command will output a file named mmdb_elevator.ral. This optional naming convention can be read right to left as elevator populated into mmdb. Later, when you populate your system with scenario specific data, you can continue the convention with mmdb_elevator_threeshafts reading threeshafts populated into elevator system populated into the metamodel db.
If all goes well, your system is loaded into the repository. Often, all will not go well, and that is likely because there are errors in your models. If any Shlaer-Mellor Executable UML modeling rules are broken, the system models won't populate. The errors will tell you what's wrong so that you can make the necessary fixes before trying again. Rather than using complex checking algorithms, we rely on the power of the metamodel itself as a tightly constrained database to detect and report model errors.
When you finally succeed, you know that your models are syntatically correct. They still might not work when you try to run them, (just like syntatically correct code) but that's another set of problems that you can resolve with the appropriate tools downstream, such as the MDB (model debugger) and MX (model execution engine).
| Option | Long form | Description |
|---|---|---|
-s |
--system |
Name of the system package to load. The package is a folder in the current working directory with the structure described below. |
-A |
--actions |
Suppress action language (Scrall) parsing. The model structure is still populated, but the actions within each activity are skipped. |
-v |
--verbose |
Print progress and the populated metamodel to the console. |
-L |
--log |
Keep the popsystem.log diagnostic log file. By default the log is deleted when the program exits. |
-D |
--debug |
Run in debug mode. |
-V |
--version |
Print the installed version and exit. |
By default, popsystem parses and populates the action language (Scrall) along with the model structure (classes,
relationships, states, and so on). If you don't want the action language parsed, suppress it with the -A option:
% popsystem -s elevator -A
You might do this when you just want to validate your class and state models without worrying about the action language yet. The models still populate; only the actions within each activity are skipped.
Each system is defined in a single package broken down into standard hierarchy of folders.
Here is a partial layout for The Elevator Case Study as an example:
elevator // system name
elevator-management // domain name
elevator // subsystem name (coincidentally matches system name)
class-model // must contain a single .xcm file for the subsystem
elevator.xcm // must exist, and no more than one .xcm file
elevator.pdf // any other files in this folder are not processed
elevator.mls
external // external entities, each a proxy for some class, this folder is optional
external.yaml // defines all external entities, synch and asynch services
mark.yaml // implicit bridging, if any (implicit state entry events, for example)
methods // methods for all classes in the subsystem
cabin // methods defined on the 'cabin' class (must be a modeled class name)
count-stops-oneway.mtd
count-stops-roundtrip.mtd
estimate-delay.mtd
ping.mtd
ping-both-ways.mtd
bank-level
choose-shaft.mtd
// no other classes define methods in this subsystem
state-machines // lifecycles and assigners for this subsystem
aslev.xsm
blev.xsm
cabin.xsm // lifecycles named by class, assigners by association
door.xsm
floor-service.xsm
R53.xsm
transfer.xsm
class-collaboration-diagram.pdf // optional and not processed
layouts // optional subfolder with diagrams and layout sheets, not processed
// no other subsystem folders in this example, but there can be, each structured like elevator above
// this next types folder is optional for now, but you'll need it in the future
// it defines model level data types for the entire domain
types
// content is not processed by popsystem, but it is processed downstream
// more elevator system domain files will be added such as transport and sio (signal i/o)
// for now, though, the elevator example only models a single domain
Here is a summary of the system skelton:
system
domain
subsystem1
class-model
classmodel.xcm
types.yaml
methods
class1
m1.mtd
...
class2
m1.mtd
...
...
state-machines
s1.xsm
...
external
external.yaml
mark.yaml
subsystem2
...
types
// content of this folder ignored by this command, but processed downstream
domain2
...
Additional files such as class model PDFs and other documentation can be present in the subfolders. Only the recognized files (xcm, mtd, etc) will be processed.
Each modeled domain has its own folder and each domain requires at least one subsystem folder.
Within a subsystem folder there is a class-model subfolder with one class model expressed as an .xcm (executable class model) file.
The following folders are necessary only if they contain model content:
- external – you can't wire this domain to any others, or stub it out in the debugger if you don't specify it
- methods – class methods each in a folder matching the class name with each method in a separate .mtd file
- state-machines – each state machine, assigner or lifecycle, in its own .xsm (executable state machine) file
The types folder resolves model level types and supported type operations like Distance, Speed, etc. to base types
and base type operations. We don't need to process these at this stage, so you can ignore this folder here.
This package is published on PyPI and requires Python 3.11 or later.
% pip install xuml-populate
Installing from within a virtual environment is recommended:
% python3 -m venv .venv
% source .venv/bin/activate
% pip install xuml-populate
The install pulls in all required Blueprint parser and database dependencies automatically
(xcm-parser, xsm-parser, mtd-parser, op-parser, scrall, mi-pyral, pyyaml). It also pulls in
xuml-metamodel, which provides the empty metamodel schema
that popsystem populates — so there is nothing extra to download or place in your working directory.
Once installed, the popsystem command is available on your path:
% popsystem -V
To upgrade to the latest release:
% pip install --upgrade xuml-populate
