VersaTiles Style

VersaTiles Style generates styles and sprites for MapLibre.

---

Styles Overview

Style Name	Preview

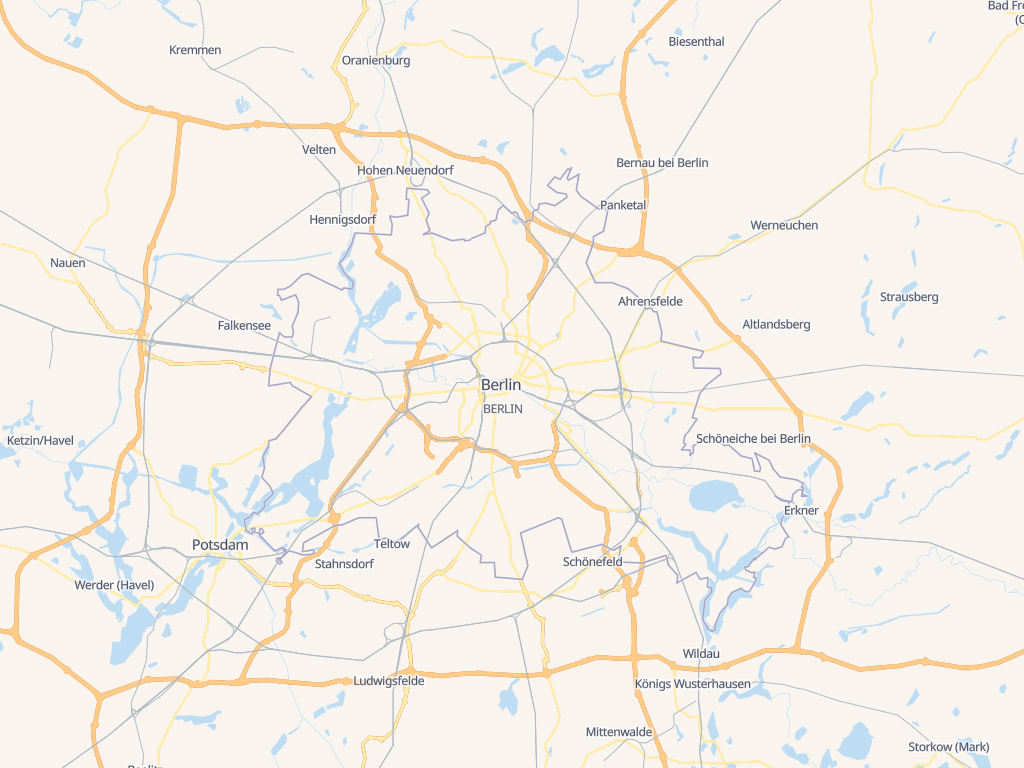

colorful

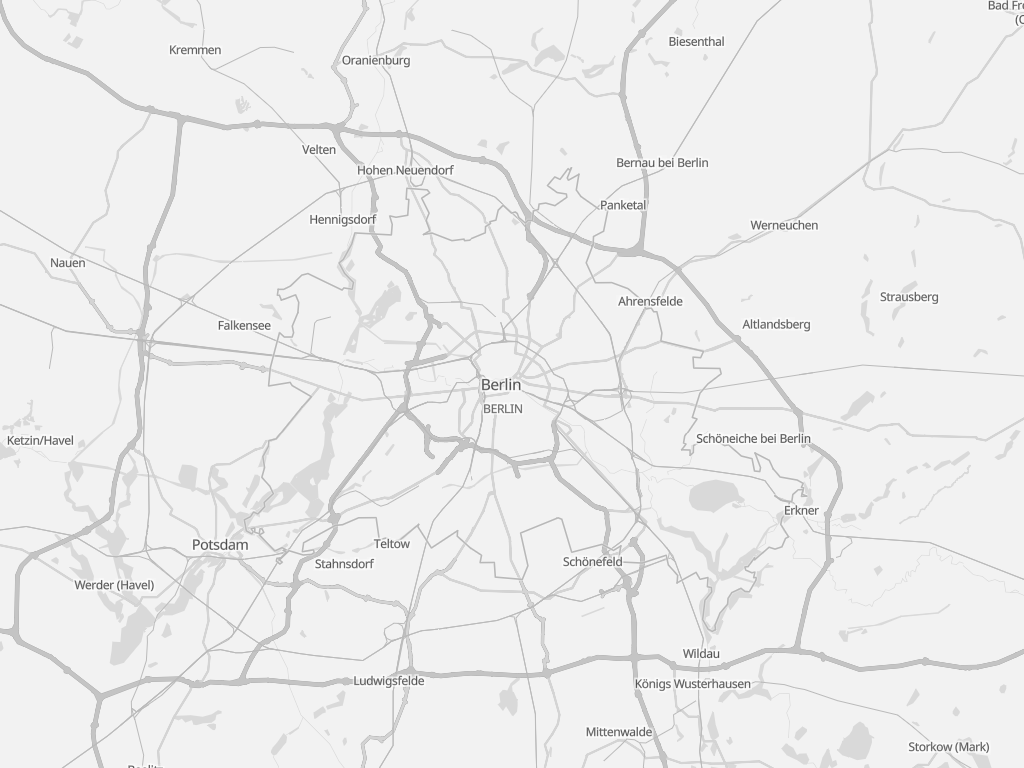

graybeard

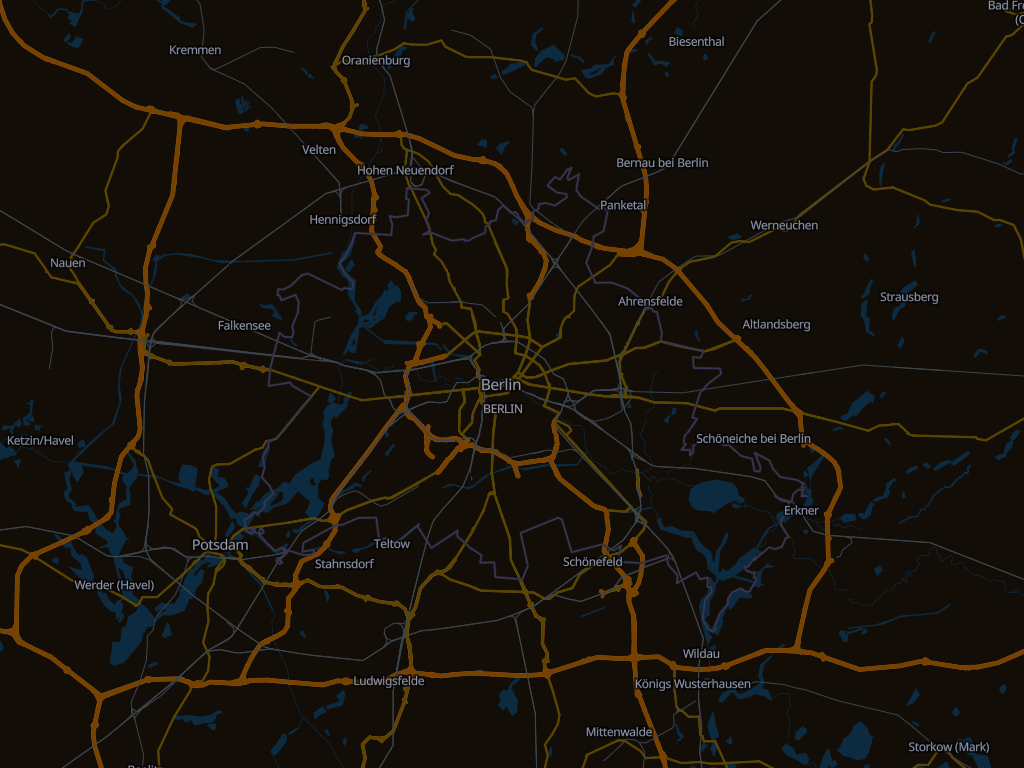

eclipse

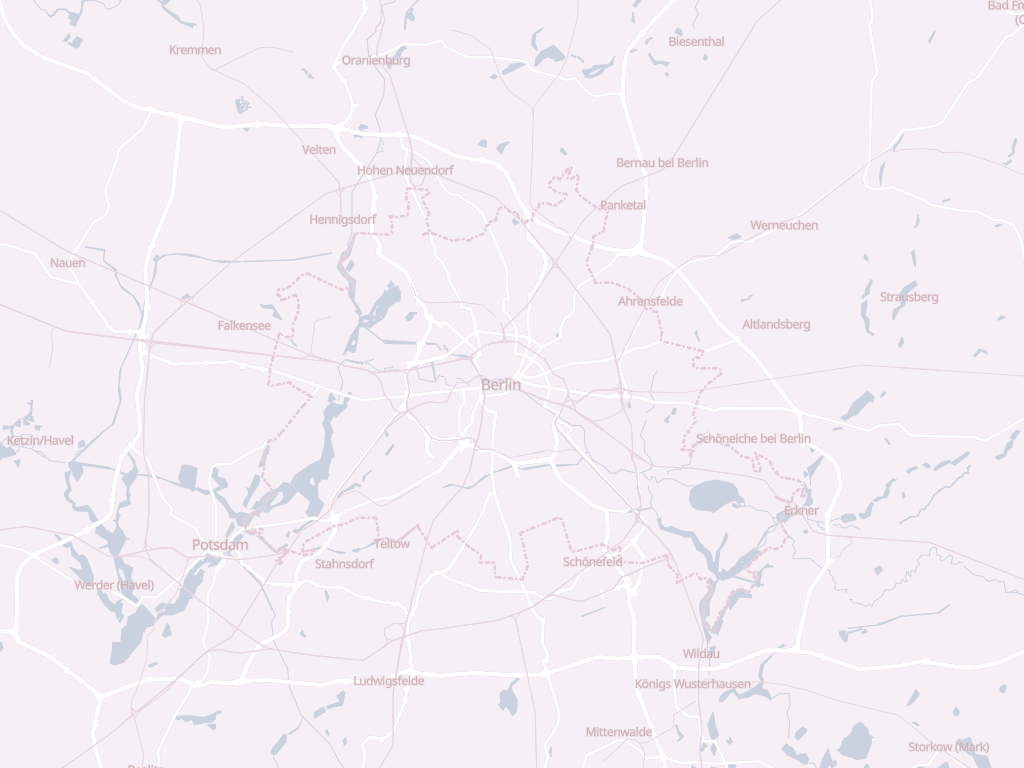

neutrino

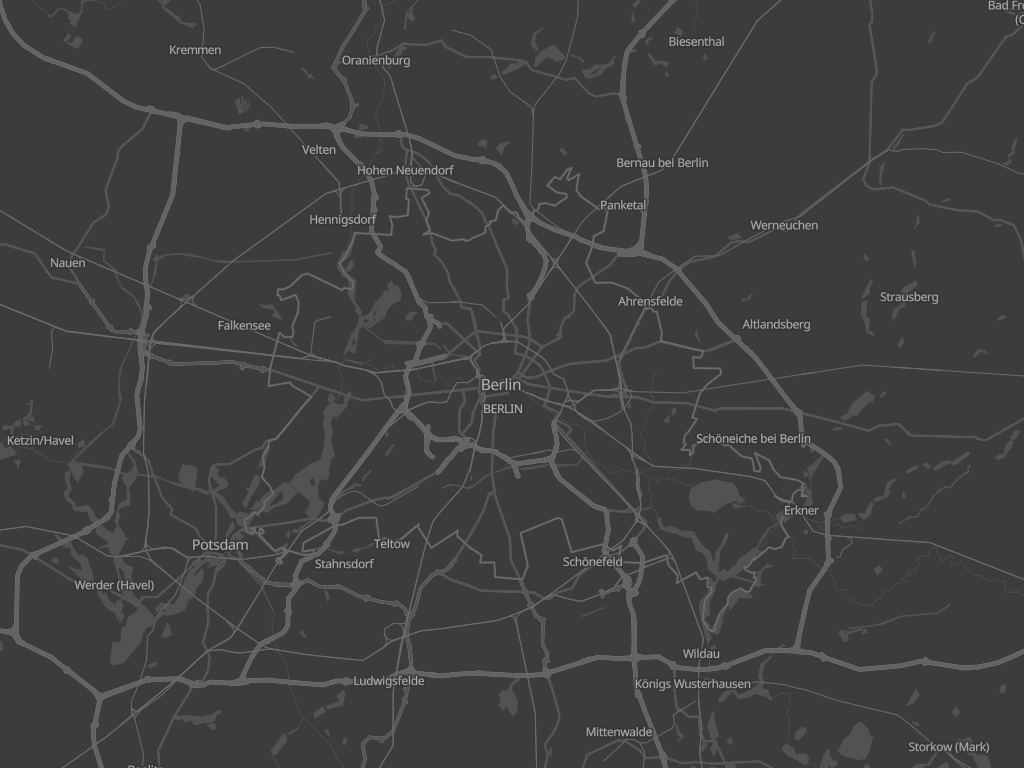

shadow

---

Using VersaTiles Styles

Prebuilt Styles and Sprites

Download the assets from the latest release:

• styles.tar.gz: Contains all styles in multiple languages.
  • Note: These styles use tiles.versatiles.org as the source for tiles, fonts (glyphs), and icons (sprites).
• sprites.tar.gz: Includes map icons and other sprites.
• versatiles-style.tar.gz: Contains a JavaScript file to generate styles dynamically in the browser.

---

Generating Styles On-the-Fly

Frontend Usage (Web Browser)

Download the latest release:

curl -Ls "https://github.com/versatiles-org/versatiles-style/releases/latest/download/versatiles-style.tar.gz" | gzip -d | tar -xf -

Integrate it into your HTML application:

<div id="map"></div>
<script src="maplibre-gl.js"></script>
<script src="versatiles-style.js"></script>
<script>
	const style = VersaTilesStyle.graybeard({
		language: 'de',
		colors: { label: '#222' },
		recolor: { gamma: 0.5 },
	});

	const map = new maplibregl.Map({
		container: 'map',
		style,
	});
</script>

Backend Usage (Node.js)

Install the library via NPM:

npm install @versatiles/style

Generate styles programmatically:

import { colorful } from '@versatiles/style';
import { writeFileSync } from 'node:fs';

const style = colorful({
	language: 'en',
});
writeFileSync('style.json', JSON.stringify(style));

---

Style Generation Methods

The library offers the following style generation methods:

• colorful(options) - Documentation
• eclipse(options) - Documentation
• graybeard(options) - Documentation
• neutrino(options) - Documentation
• shadow(options) - Documentation

options: An optional object to customize the styles. Learn more

Guess Style Method

const style = guessStyle(options);

Documentation

---

Build Instructions

Prerequisites

To build new sprites, ensure optipng is installed.

SVG Source Requirements

• SVGs must consist only of paths and should not contain any transform() attributes.
• Styles and colors within the SVG are ignored.
• All length values must be specified in pixels without units.

Configuration

Define icon sets in the configuration file: scripts/config-sprites.ts

---

Development

Run the project in development mode:

npm run dev

A local server will be available at http://localhost:8080. Use it to select a style, edit definitions in src/styles/..., and reload the page to view the changes.

Dependency Graph

---
config:
  layout: elk
---
flowchart TB

subgraph 0["src"]
subgraph 1["color"]
2["abstract.ts"]
3["hsl.ts"]
4["hsv.ts"]
5["random.ts"]
6["utils.ts"]
7["rgb.ts"]
8["index.ts"]
end
subgraph 9["guess_style"]
A["guess_style.ts"]
Z["index.ts"]
end
subgraph B["lib"]
C["utils.ts"]
end
subgraph D["styles"]
E["index.ts"]
F["colorful.ts"]
Q["eclipse.ts"]
R["empty.ts"]
S["graybeard.ts"]
T["neutrino.ts"]
U["shadow.ts"]
end
subgraph G["style_builder"]
H["style_builder.ts"]
M["decorator.ts"]
O["recolor.ts"]
P["types.ts"]
end
subgraph I["shortbread"]
J["index.ts"]
K["layers.ts"]
L["template.ts"]
N["properties.ts"]
end
subgraph V["types"]
W["index.ts"]
X["tilejson.ts"]
Y["vector_layer.ts"]
11["maplibre.ts"]
end
10["index.ts"]
end
3-->2
3-->4
3-->7
3-->6
4-->2
4-->3
4-->5
4-->7
4-->6
5-->4
5-->6
7-->2
7-->3
7-->4
7-->6
8-->2
8-->3
8-->4
8-->7
A-->5
A-->C
A-->E
A-->W
A-->X
C-->8
E-->F
E-->Q
E-->R
E-->S
E-->T
E-->U
F-->H
H-->8
H-->C
H-->J
H-->M
H-->O
H-->P
J-->K
J-->L
M-->8
M-->C
M-->N
O-->8
Q-->F
R-->F
S-->F
T-->F
U-->F
W-->X
W-->Y
Z-->A
10-->8
10-->Z
10-->E

class 0,1,9,B,D,G,I,V subgraphs;
classDef subgraphs fill-opacity:0.1, fill:#888, color:#888, stroke:#888;

Loading

Licenses

• Source Code: Unlicense
• Iconsets and Rendered Spritemaps: CC0 1.0 Universal
